LCD Controller Boards: Functionality and Integration in Industrial Display Systems

An industrial LCD controller board acts as the central translation engine between standard host video sources (such as HDMI, DisplayPort, or VGA) and the specific native signaling requirements of an a-Si TFT-LCD panel. For R&D engineers, selecting or designing the correct HDMI to LVDS board determines the system's pixel clock stability, electromagnetic interference (EMI) margins, and overall power efficiency. Implementing an industrial-grade driver kit guarantees precise timing control over the panel's Active Area, ensuring 24/7 operational reliability across rugged environments.

1. Signal Conversion Principles and Hardware Architecture

The primary engineering function of an LCD controller board is to serialize or deserialize high-bandwidth differential video signals while matching voltage logic levels.

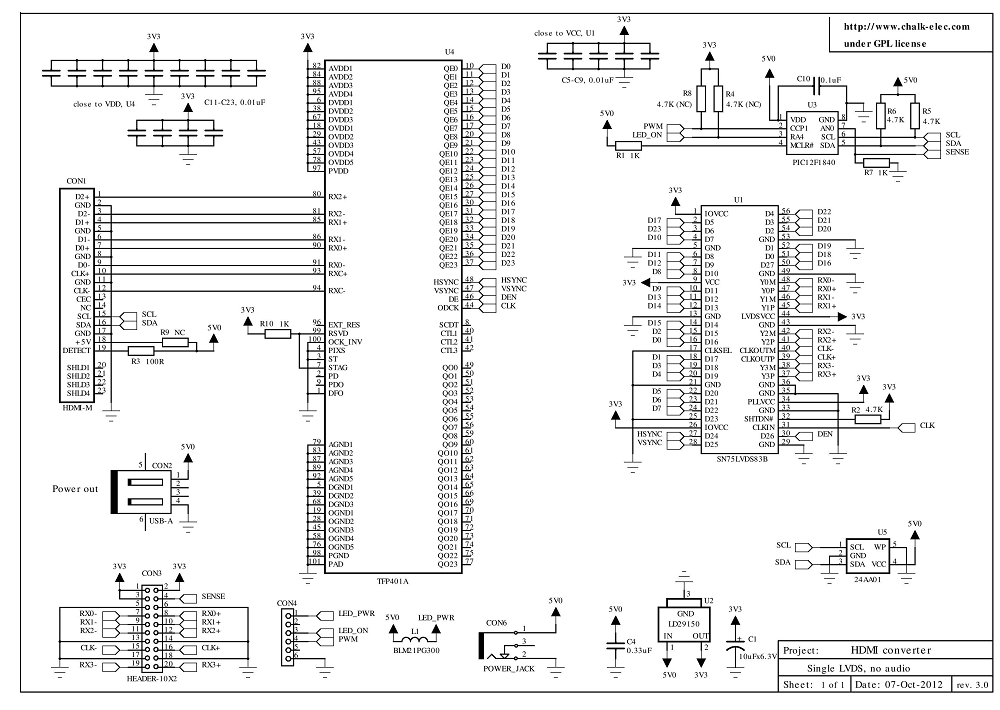

Industrial HDMI to LVDS conversion schematic.png

When converting HDMI to an LVDS interface, the onboard scalar or bridge IC processes the Transition Minimized Differential Signaling (TMDS) clock and data lanes. The controller converts these into low-voltage differential pairs (typically 4 lanes for single-channel 8-bit color, or 8 lanes for dual-channel) while managing the required Extended Display Identification Data (EDID) handshake to prevent frame drops or resolution mismatch.

Electrical and Signal Mapping Characteristics

2. Advantages of Proprietary, In-House Driver Boards

Using standard consumer-grade scaler boards introduces significant risks into industrial systems, such as unannounced component swaps and high thermal output. Standardizing on a professional Drive Kit Series provides strict configuration control and hardware hardening.

Key Technical Advantages:

• Industrial Component Selection: Utilization of capacitors and solid-state inductors rated for an operating temp -30°C to +85°C range.

• Integrated LED Backlight Drivers: Onboard constant-current circuit with wide-range PWM dimming (0.1% to 100%) optimized to maximize the panel's Backlight life up to 50,000 hours MTBF.

• Firmware Customization: Fixed EDID and custom VBIOS configuration to ensure cold-boot display visibility without relying on operating system driver initialization.

3. Rigorous Engineering Testing for Panel Compatibility

To ensure long-term reliability in fields like medical diagnostic imaging or automotive instrumentation, every new panel pairing must undergo a structured validation process.

[Host System Video Output]
          │
          ▼
[Controller Board Scalar IC] ──► [EDID / Timing Verification]
          │
          ▼
[LVDS / eDP Signal Output] ──► [Signal Integrity / Eye Diagram Test]
          │
          ▼
[TFT-LCD Active Area]

Our evaluation protocol guarantees that any module deployed through our Drive Kit Series meets the following engineering standards:

1. Signal Integrity Testing: Differential impedance tuning at 100 ohms ±10% on the LVDS lines to minimize jitter and transmission losses over internal cables.

2. Thermal Stress Profiling: Operating the controller and panel stack under full graphical load at maximum brightness within environmental chambers to check for thermal hotspots.

3. Color Precision Validation: Measuring the output against the target NTSC color gamut using optical spectrometers to prevent chromatic drift caused by unstable scaler voltage tracking.

Semantic FAQ

Q1: What is the typical lead time for custom firmware tuning on an HDMI to LVDS board?

Standard timing configuration for catalog Innolux panels takes 3 to 5 business days. For completely custom hardware layouts or specialized OEM signaling modifications, development and verification cycles require 4 to 6 weeks.

Q2: Can these controller boards support split-screen or dual-input configurations?

Yes. Our multi-input controller boards can support Picture-in-Picture (PiP) or side-by-side configurations, depending on the scalar chip selected. These options are configurable in firmware for industrial monitoring and medical instrumentation layouts.

Q3: How is EOL (End-of-Life) managed for industrial controller boards?

We select critical components (such as the main scaler IC) from lines with a guaranteed longevity of 7 to 10 years. If a component change becomes unavoidable, we provide form-fit-function compatible board revisions with identical mounting holes and connector placements.

For technical assistance with your display interface layout or to [Download Datasheet] for our compatible hardware modules, contact Xiamen Toroson to specify your project requirements today.
