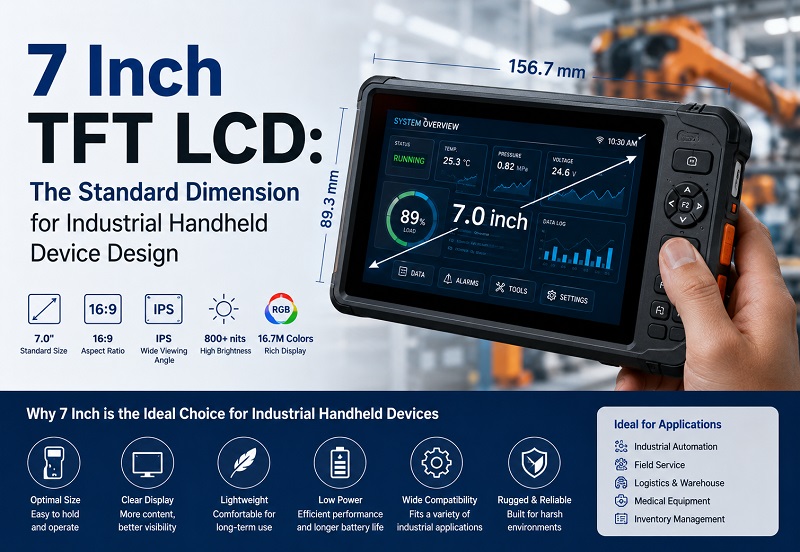

The 7 inch TFT LCD has established itself as the standard form factor for industrial handheld display modules due to its balance of readable Active Area and optimized power consumption. Operating within the standard 800x480 resolution, these panels allow R&D engineers to implement complex HMI layouts without exceeding the strict thermal and battery limitations of portable equipment. For procurement managers, the high production volume of this size guarantees long-term supply stability and lower per-unit costs for bulk orders.
The 800x480 WVGA resolution on a 7.0-inch diagonal screen provides a pixel density of approximately 133 PPI (Pixels Per Inch). This density ensures that schematic diagrams, alphanumeric data, and waveform renderings remain legible at standard handheld operating distances (30–50 cm).
Mechanical and Visual Parameters:
Aspect Ratio: 15:9 / 16:9 widescreen formats, matching modern Linux and Android GUI frameworks.
Pixel Pitch: Approximately 0.1926mm × 0.1790mm, preventing visual aliasing in critical measurement readouts.
Viewing Angles: Industrial variants utilize IPS or enhanced TN configurations to maintain color integrity up to 80°/80°/80°/80° (L/R/U/D).
For handheld devices utilizing Lithium-ion battery packs, the display module and its backlight typically consume up to 70% of total system power. Selecting an efficient a-Si TFT-LCD configuration extends field operation times without increasing device weight.
Parameter / Metric | Standard 7" Industrial Panel | High-Brightness Outdoor Panel |
Typical Luminance | 250 - 350 nits | 1000 - 1200 nits |
Backlight Power Consumption | 1.2W - 1.8W | 3.5W - 5.0W |
Panel Logic Power (VCC) | 0.3W - 0.5W | 0.4W - 0.6W |
Operating Temp Range | -20°C to +70°C | -30°C to +85°C |
Signaling Interface | TTL (24-bit) / LVDS (1-ch) | LVDS (1-ch) |
By utilizing pulse-width modulation (PWM) dimming, engineers can scale the LED current down during idle periods, preserving the Backlight life which is rated at 30,000 to 50,000 hours MTBF.
The Innolux AT070TN92 remains one of the most widely deployed 7 inch TFT LCD models in industrial automation and marine testing equipment. Its electrical and mechanical footprint acts as the benchmark for legacy system compatibility.
Key Engineering Specifications of AT070TN92:
Interface: 50-pin TTL parallel interface, facilitating direct connection to low-cost microcontrollers and legacy ARM processors.
Contrast Ratio: 500:1, ensuring distinct boundary separation for graphical user interfaces.
Color Depth: 24-bit (16.7M colors), covering a stable percentage of the NTSC color gamut for precise UI mapping.
When designing new hardware, system integrators often opt for the G070Y2-L01 as an alternative if an LVDS interface is required to reduce EMI over longer internal ribbon cables.
Q1: Can I drop-in replace a TTL 7-inch panel with an LVDS version?
No direct drop-in is possible due to pinout differences. A 50-pin TTL interface requires a translation bridge IC (e.g., RGB to LVDS serialization) on your main PCB or driver board to match the signaling requirements of an LVDS panel.
Q2: What is the minimum order quantity (MOQ) for bulk order 7 inch TFT LCD panels?
Standard catalog models like the AT070TN92 have an MOQ of one factory carton (typically 30 to 40 pieces). For customized touch panel integration or modified backlights, the MOQ generally starts at 500 to 1,000 units.
Q3: How does Xiamen Toroson manage the lifecycle of legacy 7-inch panels?
We maintain direct rolling inventory and negotiate buffer stock allocations with the factory. When a model enters the EOL phase, we issue a formal notification 6-12 months in advance and provide pin-compatible drop-in alternatives.
