LCD Selection Criteria for Warehousing and Logistics Handheld Terminals

Logistics mobile data terminals require small-format display modules engineered to survive recurrent mechanical drops, maintain legibility under high-lux outdoor staging environments, and run efficiently on limited battery reserves. Standardizing on small-form factor a-Si TFT-LCD modules between 3.5 to 5.0 inches ensures procurement cost-efficiency while meeting rugged industrial hardware profiles. For hardware architecture teams, optimizing the glass thickness, backlight efficiency, and interface choice prevents premature field failures in supply chain logistics infrastructure.

1. Mechanical Reinforcement and Impact Resistance Design

Handheld scanners in warehousing environments are subject to severe physical shocks. Ensuring compliance with standard industrial ratings like MIL-STD-810H requires display validation at the component level before chassis assembly.

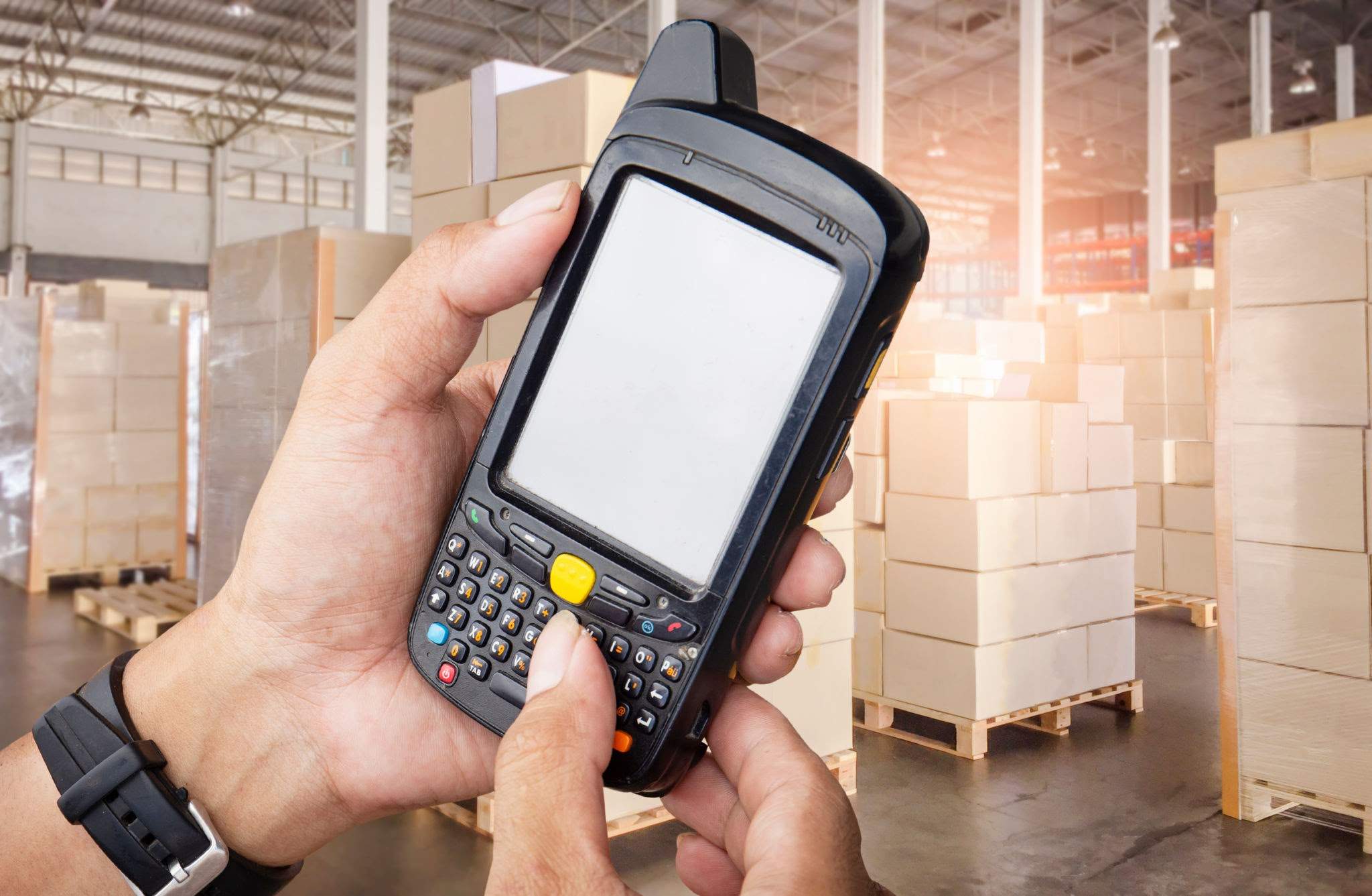

Small-format rugged display integrated into a warehousing mobile terminal.

To prevent micro-cracks on the Active Area during drop impacts, engineers specify specific physical layers:

• Chemically Strengthened Cover Glass: Utilizing aluminosilicate glass shields with a minimum surface hardness of 7H to withstand direct tool strikes.

• Optical Bonding (OCA/OCR): Filling the internal air gap between the touch sensor and the TFT cell isolates the display from localized bending stresses and enhances mechanical structural rigidity.

• Shock-Absorbing Gaskets: Housing design must incorporate a minimum 0.5mm buffer zone using high-density polyurethane foam around the perimeter of the metal bezel.

2. Low-Power Consumption Engineering Strategies

Battery runtime dictates the field operational window of logistics hardware. Since the display subsystem represents a major continuous current draw, scaling back the active power profile is essential for multi-shift operation.

Display Subsystem Power Allocation Matrix

To restrict power consumption on our 3.5" - 5" catalog, we utilize high-transmittance color filters that maximize light extraction per LED, maintaining low power use without lowering target luminance.

3. High-Lux Sunlight Readability and Contrast Preservation

Logistics terminals move constantly between dark indoor aisles and outdoor loading docks with ambient light up to 100,000 lux. Preventing optical washout requires a baseline luminance of 500 to 1000 nits combined with effective reflection control.

• Anti-Glare (AG) & Anti-Reflection (AR) Coatings: Surface treatments scatter specular reflections and reduce the total reflectance to under 2%, preserving the standard 1000:1 contrast ratio under solar loading.

• Transflective Optical Path Selection: For specialized low-power applications, using a transflective pixel structure allows ambient light to act as an auxiliary illumination source, reducing full backlight dependence during outdoor use.

• Color Saturation Under Bright Light: Maintaining at least 50% of the NTSC color gamut under direct light exposure prevents user error when reading color-coded sorting codes.

Semantic FAQ

Q1: Can MIPI display interfaces be easily adapted to legacy industrial microcontrollers?

No, MIPI DSI requires specialized hardware protocol engines found on application processors like ARM Cortex-A series. For simple MCUs, specify modules from our 3.5" - 5" list featuring 80-system parallel or SPI signaling interfaces to minimize driver complexity.

Q2: What is the typical operating temperature limits for these logistics panels?

Our handheld industrial display models support a guaranteed operating temp -30°C to +85°C range. This allows terminals to transition from deep-freeze cold storage facilities directly to hot outdoor loading yards without liquid crystal sluggishness.

Q3: How does touch panel thickness affect display responsiveness in logistics operations?

Thicker cover glass (up to 1.8mm) protects against impact but requires touch controller firmware tuning. We calibrate the projected capacitive (PCAP) IC controllers to support input from thick industrial gloves and wet outdoor operations.
