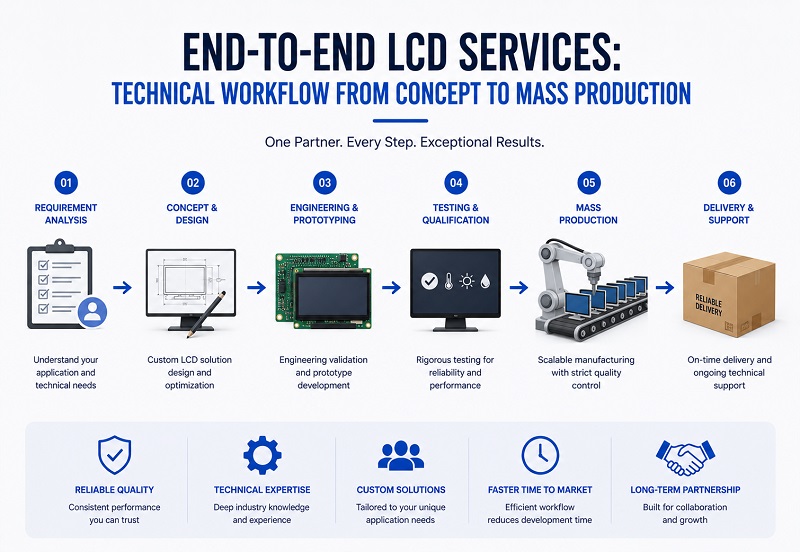

Toroson’s end-to-end LCD service provides system integrators and OEM manufacturers a structured engineering workflow, transforming initial display specifications into verified hardware solutions. The process integrates direct technical communication, rapid prototyping with stringent reliability testing against industrial standards (e.g., -30°C to +85°C operating temperatures), and bulk manufacturing supported by a 20-year authorized Innolux supply chain. This technical approach mitigates integration risks and ensures that the final a-Si TFT-LCD or Custom Series module adheres strictly to the defined mechanical and electrical parameters required for industrial, automotive, or medical deployment.
The customization process begins with direct communication between the client's engineering team and Toroson’s technical consultants. This phase is dedicated to defining the absolute physical and operational constraints of the required display module. We displace marketing adjectives with hard data points to construct a rigorous technical requirement document (TRD).
Key parameters defined during initial communication include:
Mechanical Dimensions: Maximum module thickness, Active Area coordinates, and bezel width tolerances (<2.5mm for specialized designs).
Optical Requirements: Native resolution, luminance levels (e.g., 500 nits indoor vs. 1000+ nits sunlight readable), and minimum contrast ratio (e.g., 1000:1).
Electrical Interfaces: Selection of LVDS interface, MIPI DSI, or eDP based on host processor capabilities and EMI constraints.
Environmental Tolerance: Defining the required operating and storage temperature ranges, humidity resistance, and shock/vibration specs.
This technical definition phase guarantees that all subsequent engineering efforts are aligned with the actual integration environment of the control panel or handheld device.
Once the specification is locked, Toroson initiates the rapid prototyping phase. This step is critical for validating the design assumptions before committing to bulk manufacturing. Depending on complexity, customized samples are generated within a defined engineering timeline (typically 4-8 weeks for complex custom backlights or touch integration).
The generated prototypes undergo a rigorous series of validation tests in our environmental chambers and optical labs.
Test Category | Engineering Metric / Standard | Description / Purpose |
Thermal Cycling | -30°C to +85°C (IEC 60068-2-14) | Verifies liquid crystal stability and polarizer adhesion at extremes. |
Backlight Life (MTBF) | 30,000 to 50,000+ Hours (to half brightness) | Accelerates LED degradation to verify driver efficiency and thermal management. |
Optical Precision | NTSC Color Gamut (>70% coverage) | Measures chromatic accuracy and luminance uniformity across the active area. |
Vibration & Shock | 1.5G / 50G (IEC 60068-2-6 / 27) | Tests mechanical rigidity of the bezel, FPC connections, and bonding. |
Touch Interface | 4H minimum hardness (G+G bonding) | Validates capacitive touch responsiveness and cover glass durability. |
Prototypes that fail any of these hard data metrics are immediately recycled into the design phase for corrective action. Only verified samples receive an official Test Report and are submitted to the client for final on-site integration testing.
Transitioning from verified prototype to mass production requires strict adherence to standardized manufacturing protocols. As an authorized Innolux distributor and veteran provider of Customized Service, Toroson ensures material consistency by locking BOM (Bill of Materials) components. This prevents unannounced component swaps—such as driver ICs or LED bins—which can introduce chromatic drift or interface failures in the field.
Our bulk manufacturing process is managed through three primary QC checkpoints:
Incoming Quality Control (IQC): Every batch of raw Innolux open-cell glass, customized backlights, and driver PCBs is inspected against the locked BOM data. We verify a-Si TFT glass grades and LED bin consistency.
In-Process Quality Control (IPQC): Cleanroom assembly lines (Class 1000 or higher) utilize automated optical inspection (AOI) to detect dust, misalignment, or pixel defects during the bonding and assembly stages.
Final Quality Control (FQC): 100% of finished modules undergo a final functional test, including luminance verification, contrast ratio measurement, and interface handshake checks before vacuum sealing in ESD packaging.
This structured approach ensures that the tens of thousands of modules in a bulk order possess the identical reliability and performance metrics of the verified prototype.
Q1: What is the typical lead time from prototype verification to initial bulk shipment? Once the prototype is approved and the BOM is locked, bulk manufacturing typically requires 6 to 8 weeks for standard customized backlights or PCAP touch integrations. This timeline facilitates material procurement, Class 1000 cleanroom scheduling, and comprehensive FQC testing.
Q2: How does Toroson ensure component longevity for 5-7 year industrial product lifecycles? We actively manage component lifecycles by sourcing core a-Si TFT glass directly through authorized Innolux channels. For customized elements like backlights or PCBs, we lock BOM components with suppliers committed to industrial longevity. We provide formal EOL (End-of-Life) notifications 6-12 months in advance and offer Last Time Buy (LTB) options.
Q3: Does Toroson provide customization for interface conversion (e.g., HDMI to LVDS)? Yes. Through our end-to-end service, we design and manufacture custom driver boards (controller boards) that convert standard inputs like HDMI or DP into the native LVDS interface or MIPI signaling required by the panel. This includes pre-flashing fixed EDID and timing parameters.
