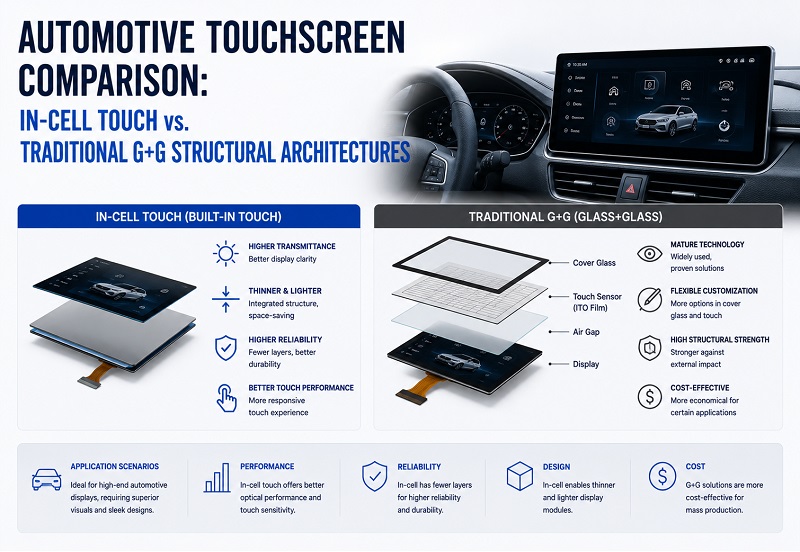

Automotive Touchscreen Comparison: In-cell Touch vs. Traditional G+G Structural Architectures

Integrating touchscreen functionality into automotive center consoles and instrument clusters requires a choice between In-cell display matrices and traditional Glass-on-Glass (G+G) external digitizer assemblies. In-cell touch architecture embeds the capacitive sensor electrodes directly within the a-Si TFT-LCD cell layers during array fabrication, eliminating the independent touch glass sensor layer. This structural integration reduces the physical thickness of the display stack by up to 1.0mm and improves optical transmissive efficiency to over 88%, providing a direct commercial solution to automotive requirements for lower subsystem weight and daytime readability.

1. Mechanical Footprint: Thickness and Weight Reduction Metrics

Automotive console space is constrained by dashboard structural beams and thermal management modules. Reducing the depth and mass of the display assembly lowers the moment of inertia for the center stack mounting brackets, improving structural safety metrics under mechanical shock testing (such as FMVSS 201 crash impact standards).

• G+G Structural Stack: Utilizes an LCD panel, a separate sensor glass layer containing Indium Tin Oxide (ITO) patterns, and an outer cover glass layer. These three independent components are laminated using two separate layers of Optically Clear Adhesive (OCA).

• In-cell Structural Stack: Integrates the touch drive and sense lines inside the TFT glass substrate itself, using the existing common electrode (Vcom) layer. This eliminates both the sensor glass and the intermediate OCA lamination layer.

Mechanical Dimension Comparison Table

2. Optical Efficiency: Transparency and Solar Reflectance Disparities

Outdoor readable performance inside passenger vehicles is limited by internal reflection between the overlapping glass boundaries of the display stack. Every air-to-glass or adhesive-to-glass interface causes refraction, which drops the effective luminance reaching the driver's eyes.

Because an In-cell display eliminates the intermediate sensor glass and its associated lamination interface, internal light scatter is reduced.

• Total Transmittance Performance: G+G modules typically deliver a total optical transmittance of 82% to 84%. In-cell modules achieve 88% to 92% transmittance using identical LED backlight wattages, allowing R&D engineers to reduce overall system power consumption while maintaining identical nit levels.

• Contrast Retention: Under direct 10,000 lux solar illumination, an In-cell display exhibits a 20% higher real-world contrast ratio than an unbonded G+G stack, keeping alphanumeric map labels legible without shifting the NTSC color gamut.

3. Manufacturing Process Maturity and Thermal Endurance Requirements

Automotive components must endure extended thermal stress validation, requiring continuous operation across the operating temp -30°C to +85°C range without adhesive delamination or sensor trace cracking.

[Traditional G+G Stack]
Cover Glass ──► OCA Layer ──► Sensor Glass ──► OCA Layer ──► TFT-LCD Panel

[In-cell Touch Stack]
Cover Glass ──► OCA Layer ──► In-cell TFT-LCD Panel (Embedded Sensors)

Process Vulnerabilities and Yield Control:

1. Thermal Expansion Stress: G+G stacks involve three separate layers of glass. Under a +85°C soak test, mismatched coefficients of thermal expansion (CTE) between the sensor glass and the LCD panel can induce mechanical shear, leading to yellowing or bubbles in the OCA layer. In-cell panels reduce this risk by half.

2. Signal Isolation (EMI): In-cell systems place touch sensing nodes near the high-speed liquid crystal driving circuits. To prevent electrical crosstalk, Innolux uses time-multiplexed signaling, separating the touch scanning window from the display update cycle. This requires specific synchronization within the LVDS interface or MIPI controller firmware.

3. Supply Longevity: Sourcing panels through a dedicated Automotive LCD line ensures that the underlying semiconductor configurations remain unchanged for a 5-to-7-year model lifecycle, meeting long-term B2B delivery commitments.

Semantic FAQ

Q1: Does In-cell touch support operation with heavy industrial or leather gloves?

Yes. Modern automotive In-cell controllers operate on high-voltage differential mutual-capacitance and self-capacitance scanning. Firmware configurations allow sensitivity adjustment to register inputs through 1.5mm thick leather gloves or in the presence of water droplets on the cover glass.

Q2: What is the typical lead time for custom cover glass integration on In-cell panels?

Tooling and prototyping for a customized cover glass (including anti-reflective AR, anti-glare AG, and anti-fingerprint AF coatings) takes 4 weeks. Full production runs for integrated Automotive LCD modules require a lead time of 6 to 8 weeks.

Q3: How does In-cell touch impact the replacement of EOL dashboard screens?

Because the touch sensor and driver IC are integrated inside the panel capsule, an EOL replacement requires a single unified component swap. This simplifies procurement compared to legacy G+G systems, where sourcing separate touch panels and LCDs from different vendors was required.
