When selecting a TFT LCD module for industrial equipment, one of the most common questions is whether to choose an IPS TFT LCD or a TN TFT LCD.
Both IPS and TN technologies use thin-film transistor structures to control liquid crystal pixels, but their optical performance, viewing angle, color stability, response characteristics, and application suitability are different.
The correct display technology choice affects user experience, product reliability, development cost, and long-term customer satisfaction.
For industrial HMIs, medical devices, automotive terminals, smart control panels, and outdoor equipment, engineers should evaluate more than only screen size and price.
Choose IPS TFT LCD when:
Users view the display from different angles.
Color consistency is important.
The equipment requires a premium user interface.
The display integrates touch panels or cover glass.
The product is used in industrial, medical, or public environments.
Choose TN TFT LCD when:
Cost control is the primary concern.
The viewing direction is fixed.
The application requires simple information display.
Lower power consumption is important.

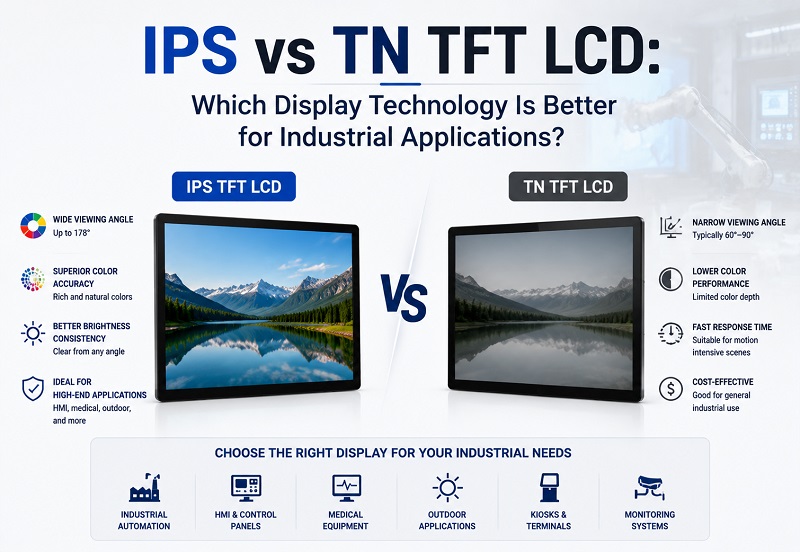

Comparison Item | IPS TFT LCD | TN TFT LCD |
|---|---|---|
Technology Name | In-Plane Switching | Twisted Nematic |
Viewing Angle | Wide viewing angle with stable image performance | Limited viewing angle with noticeable image changes |
Color Performance | Better color consistency and accuracy | Standard color performance |
Response Time | Good for industrial applications | Traditionally faster response |
Manufacturing Cost | Higher | Lower |
Industrial Application | High-performance industrial displays | Cost-sensitive equipment |
Touchscreen Integration | Excellent choice for touch displays | Suitable for simple fixed-angle applications |
TN (Twisted Nematic) is one of the earliest TFT LCD technologies used in commercial displays.
The technology controls light transmission by changing the orientation of liquid crystal molecules between two electrodes.
Because of its mature manufacturing process, TN TFT LCD panels have been widely used in applications where cost and efficiency are more important than viewing-angle performance.
Lower production cost: TN panels are generally more economical because of their mature manufacturing process.
Fast response: TN technology traditionally provides faster pixel response characteristics.
Lower power consumption: Many TN displays can operate efficiently in battery-powered equipment.
Wide availability: TN TFT LCD products are available in many sizes and standard configurations.
The main limitation of TN technology is viewing-angle performance.
When the user looks at the screen from different directions, common problems include:
Brightness reduction
Color shift
Contrast change
Image inversion at extreme angles
For equipment operated by one person from a fixed position, these limitations may not create a problem.
However, for industrial equipment installed on production lines, public terminals, or medical devices, multiple viewing positions are common. In these situations, IPS technology is usually preferred.
IPS (In-Plane Switching) is a TFT LCD technology designed to improve viewing-angle performance and image stability.
Unlike TN panels, IPS controls liquid crystal movement horizontally within the same plane.
This structure helps maintain better image quality when the display is viewed from different directions.
Today, IPS TFT LCD modules are widely used in:
Industrial HMI systems
Medical equipment
Automotive displays
Smart control panels
POS terminals
Outdoor and semi-outdoor equipment
For industrial TFT LCD applications, IPS panels are often combined with:
Capacitive touch screens
Optical bonding
Anti-glare coating
Anti-reflective treatment
High-brightness LED backlights
Learn more about industrial TFT LCD structures in our guide: What Is a TFT LCD Display?
The biggest advantage of IPS TFT LCD technology is its wide viewing angle.
Users can view the screen from different positions while maintaining better:
Color stability
Brightness consistency
Image clarity
Contrast performance
This is especially important for:
Factory equipment operated by multiple workers
Medical equipment viewed by doctors and assistants
Vehicle displays used under changing viewing conditions
Public information terminals
Color accuracy is not only determined by the LCD panel itself. It also depends on viewing angle stability.
A TN display may show different colors when viewed from different directions.
IPS panels maintain more consistent color reproduction, making them suitable for applications where information must remain visually reliable.
Examples include:
Industrial monitoring systems
Medical displays
Measurement instruments
Professional control interfaces
Many modern industrial displays include touch functions.
Additional layers such as:
PCAP touch sensors
Cover glass
Optical adhesive
Protective coating
can affect image quality.
IPS technology provides better viewing-angle stability after adding these optical layers.
For touchscreen selection, read: How to Choose the Right Touch Screen for Industrial Displays
Many industrial products are not used by only one person.
Examples:
Factory production dashboards
Medical monitoring systems
Transportation information displays
Retail terminals
In these situations, the display should provide consistent information regardless of where the user stands.
Viewing Direction | IPS TFT LCD | TN TFT LCD |
|---|---|---|
Front View | Excellent image quality | Good image quality |
Side View | Maintains better colors and contrast | More visible color and brightness changes |
Vertical Angle | More stable | Greater image variation |
Multiple Users | Recommended | Limited |
Response time is another specification often discussed when comparing IPS and TN TFT LCD technology.
Traditionally, TN panels have had an advantage in pixel response speed because of their liquid crystal structure.
This characteristic made TN displays popular in applications where fast image changes are important.
However, modern IPS TFT LCD technology has improved significantly. For most industrial applications, the difference in response time is usually less important than:
Viewing angle requirements
Touch response
Controller performance
Software optimization
Refresh rate requirements
A faster response display can be useful for:
High-speed camera monitoring
Motion tracking systems
Fast industrial measurement equipment
Certain gaming or entertainment products
For most industrial HMIs, dashboards, and control panels, stable image quality and viewing angle are usually more important than the fastest possible response time.
Many buyers believe IPS automatically means better outdoor visibility.
This is not completely correct.
Outdoor readability depends on the complete optical design, including:
LCD brightness level
LED backlight performance
Optical bonding technology
Anti-glare coating
Anti-reflective treatment
Cover glass reflection
Ambient lighting conditions
A standard brightness IPS display may still be difficult to read under direct sunlight if the optical design is not optimized.
For outdoor industrial applications, engineers usually evaluate:
High brightness TFT LCD
Optical bonding
Sunlight readable design
Wide temperature operation
Learn more: High Brightness vs Standard TFT Displays: Is the Extra Cost Worth It?
Power consumption is another factor engineers consider, especially for portable and battery-powered products.
Factor | IPS TFT LCD | TN TFT LCD |
|---|---|---|
Panel structure | More advanced optical structure | Simpler liquid crystal structure |
Typical power requirement | Slightly higher in many designs | Usually lower |
Battery-powered equipment | Requires optimized design | Often preferred for simple devices |
Industrial fixed equipment | Usually acceptable | Suitable when budget is important |
For most industrial equipment connected to a stable power source, the difference in panel power consumption is usually not the deciding factor.
Human-machine interface (HMI) systems are often used in factories where operators view the display from different positions.
IPS TFT LCD is usually preferred because it provides:
Stable image quality
Better viewing angle
Clearer touch operation
Better user experience
Typical applications include:
Factory automation panels
Machine control systems
Production monitoring terminals
Industrial equipment interfaces
Medical equipment often requires consistent image presentation.
Examples include:
Patient monitoring equipment
Laboratory instruments
Medical control terminals
Diagnostic devices
IPS technology helps maintain image stability when different users view the display from different angles.
Modern industrial products increasingly combine displays with touch panels.
A complete touch display normally includes:
TFT LCD module
Touch sensor
Cover glass
Optical adhesive
Controller board
Because each layer can affect reflection and readability, IPS TFT LCD is often selected for touch-based applications.
Related guide: Capacitive vs Resistive Touch Screen for Industrial Displays
TN TFT LCD remains a practical choice when:
The viewing direction is fixed
The product requires basic information display
The budget is limited
Power consumption needs to be minimized
Typical applications include:
Simple meters
Counters
Basic industrial indicators
Entry-level equipment panels
Project Requirement | Recommended Choice |
|---|---|
Multiple users view the screen | IPS TFT LCD |
Need stable colors | IPS TFT LCD |
Outdoor application | High brightness IPS TFT LCD |
Low-cost product | TN TFT LCD |
Battery-powered equipment | TN or optimized IPS |
Industrial touchscreen | IPS TFT LCD |
A cheaper display may increase future costs if users complain about poor visibility, unstable colors, or difficult operation.
Display selection should consider:
User environment
Viewing angle
Lighting conditions
Touch requirements
Product lifetime
A display mounted above eye level or viewed from the side may require IPS technology even when a TN display looks acceptable during testing.
High brightness alone does not guarantee good readability.
The complete optical design should be evaluated together:
LCD panel
Touch layer
Cover glass
Bonding method
Surface treatment
Industrial products often require several years of stable production.
Before selecting a TFT LCD, confirm:
Panel availability
Lifecycle support
Alternative replacement models
Specification stability
For most industrial applications, IPS TFT LCD provides better viewing angles, color stability, and user experience. TN remains suitable for cost-sensitive products with fixed viewing positions.
IPS may require slightly more power depending on the panel design, but the difference is usually less important than brightness, backlight efficiency, and system optimization.
Yes. IPS TFT LCD is commonly selected for industrial touch displays because it maintains clearer images when users view the screen from different angles.
Yes, but outdoor performance depends on brightness, optical design, reflection control, and environmental conditions rather than panel technology alone.
Sometimes. The replacement must match size, resolution, interface, connector, timing, voltage, backlight specification, and mechanical requirements.
IPS TFT LCD is generally preferred because medical equipment often requires stable viewing angles and consistent image quality.
Choosing between IPS and TN is only the first step. The final display solution also depends on resolution, interface, brightness, touch technology, operating temperature, controller board, and mechanical design.
