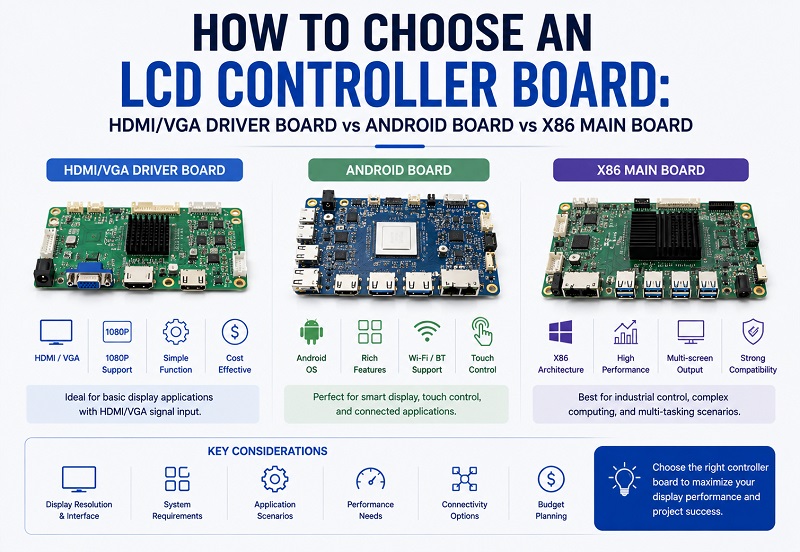

How to Choose an LCD Controller Board: HDMI/VGA Driver Board vs Android Board vs X86 Main Board

A bare TFT LCD panel normally cannot accept an HDMI, VGA, USB, or network signal directly. It requires a compatible controller system to convert the source signal into the panel’s native resolution, timing, interface, and backlight-control requirements.

The correct controller may be a simple HDMI/VGA LCD driver board, an Android main board, or a complete X86 industrial computer board.

These three solutions serve different purposes. Selecting the wrong one can lead to a blank screen, incorrect resolution, unstable images, missing touch functions, limited software support, or unnecessary system cost.

Quick Selection Recommendation

Choose an HDMI/VGA LCD controller board when the display only needs to show video from an external computer, camera, media player, or industrial host.

Choose an Android main board when the equipment needs to run an Android application, touchscreen interface, multimedia content, wireless connection, or cloud-based terminal software.

Choose an X86 main board when the system must run Windows, Linux, industrial-control software, database applications, machine-vision tools, or other PC-class programs.

Choose the LCD panel and controller together. Resolution, interface, timing, firmware, backlight, touch controller, connector, operating system, and mechanical design must all be compatible.

LCD Controller Options at a Glance

The exact interfaces, operating-system versions, peripheral support, and processor specifications depend on the selected controller model. Confirm the official board specification before starting hardware or software development.

What Is an LCD Controller Board?

An LCD controller board receives image information from a video source or processor and converts it into the electrical signals required by the TFT LCD.

Depending on the system, the controller may perform several functions:

• Receive HDMI, VGA, DVI, DisplayPort, AV, or another video input

• Decode the incoming video signal

• Scale the image to the LCD’s native resolution

• Generate the correct pixel clock and synchronization timing

• Output LVDS, eDP, RGB, or MIPI signals

• Provide LCD logic power

• Control the LED backlight

• Receive keypad or remote-control commands

• Store panel firmware and timing parameters

• Manage audio output where supported

A complete solution may also include:

• LCD panel

• Controller board

• Panel signal cable

• Backlight cable

• Keypad board

• Power adapter

• Touch panel

• Touch-controller board

• Mechanical frame or housing

The lcdsell.com Drive Kit Series covers display controller boards, Android main boards, and X86 platforms for different integration requirements.

Important distinction: A controller board is not automatically compatible with every LCD that uses the same connector. Its firmware, resolution, timing, voltage, interface mapping, and backlight output must match the exact panel model.

What Is an HDMI/VGA LCD Driver Board?

An HDMI/VGA LCD driver board converts an external video signal into the native signal required by a bare LCD panel.

It does not normally replace the external computer, camera, media player, or machine controller. It works as the bridge between that source and the TFT LCD.

Typical Signal Flow

External PC, camera or media source

↓

HDMI / VGA / DVI input

↓

LCD controller and scaler

↓

LVDS / RGB / eDP output

↓

TFT LCD panel

When to Choose a Video Driver Board

Use this solution when:

• The content comes from an external PC or industrial computer.

• The display only needs to act as a monitor.

• The system uses a camera with HDMI or VGA output.

• The project needs a simple prototype or test fixture.

• The main machine controller already generates a standard video signal.

• No Android or Windows application needs to run on the display board.

Advantages

• Lower cost than a complete computing main board

• Simple system architecture

• Shorter development cycle

• Supports common external video sources

• Can provide scaling and on-screen display controls

• Suitable for LCD testing and replacement projects

Limitations

• Requires an external signal source.

• Does not normally run customer applications.

• Firmware must match the LCD timing.

• Touch data normally returns separately through USB or another interface.

• Non-standard resolutions may require custom firmware.

• Industrial temperature and long-term supply must be checked.

The JLS-D2513-01 LCD display driver board is designed for display integration with HDMI and VGA inputs, LVDS output, and optional backlight-driver support.

Best fit: Choose a video driver board when the LCD should behave like an embedded monitor rather than a complete smart computing terminal.

What Is an Android Main Board?

An Android main board combines a processor, memory, storage, graphics engine, operating system, peripheral interfaces, and display output on one embedded platform.

Instead of receiving finished video from another computer, it runs the application and generates the display content itself.

The lcdsell.com RK3568 Android Board uses a Rockchip RK3568 processor platform and is positioned for embedded Android display applications and volume deployment.

Typical Android Board Functions

• Run Android applications

• Render touch-based graphical interfaces

• Play multimedia content

• Connect to Wi-Fi, Ethernet, Bluetooth, or cellular modules where supported

• Communicate with external equipment through USB, serial ports, GPIO, CAN, or other interfaces

• Store local data

• Connect to cloud platforms

• Update software remotely

• Control brightness, audio, and other peripherals

When to Choose an Android Board

Use an Android platform when:

• The product needs a custom Android app.

• The interface is mainly touch-operated.

• The system displays multimedia, menus, dashboards, or cloud content.

• Wireless connectivity is important.

• The project needs a faster application-development path than a low-level MCU design.

• Android-based device management or remote updates are required.

Common Applications

• Smart home control panels

• Self-service kiosks

• POS terminals

• Digital signage

• Access-control terminals

• Charging-station displays

• Fitness equipment

• Industrial information terminals

• Building-automation panels

Advantages

• Integrated processor and operating system

• Supports modern touch interfaces

• Good multimedia capability

• Flexible network connectivity

• Large Android software ecosystem

• Suitable for standalone smart terminals

Limitations

• Requires firmware and operating-system maintenance.

• The selected Android version may affect application compatibility.

• Boot time is longer than a simple video board.

• Storage and memory must match the application workload.

• Peripheral drivers may require customization.

• Long-term software support must be planned.

For processor and software selection details, review Android Main Board Selection Guide: Optimizing RK3568 and ARM Architectures for Industrial LCDs.

Best fit: Choose Android when the product needs an integrated touchscreen application, multimedia capability, network connection, and standalone operation without a separate PC.

What Is an X86 Industrial Main Board?

An X86 main board uses a PC-class processor architecture and can run operating systems and applications commonly used on industrial computers.

Compared with a simple LCD driver board, it performs the complete computing task. Compared with many Android boards, it is better suited to Windows software, traditional desktop applications, large databases, industrial automation tools, and PC-based peripherals.

The lcdsell.com X86 Main Board Series is intended for industrial display and embedded-computing integration.

When to Choose X86

Use an X86 platform when:

• The system must run Windows software.

• The application uses an existing PC-based program.

• The project requires industrial Linux on an X86 platform.

• The system performs machine vision or image processing.

• Several high-speed peripherals must operate together.

• The application needs high processing performance or large memory.

• Standard PC drivers and software libraries are required.

Common Applications

• Industrial panel PCs

• Machine-vision systems

• Medical workstations

• Test and measurement equipment

• Factory automation terminals

• SCADA and monitoring systems

• Data-acquisition equipment

• Self-service terminals running Windows

Advantages

• Supports PC-class operating systems

• Compatible with established industrial software

• Higher processing and memory options

• Broad peripheral and driver support

• Suitable for complex multitasking

• Easier integration with many industrial PC systems

Limitations

• Higher cost and power consumption than a simple driver board

• Greater thermal-management requirement

• More complex BIOS and driver configuration

• Operating-system licensing may be required

• Longer boot time than a basic embedded controller

• Hardware lifecycle and driver support must be planned

For detailed display-side configuration, read X86 Industrial Main Board Display Integration: Driver and BIOS Tuning Guide.

Best fit: Choose X86 when the display system must operate as a full industrial computer rather than a media terminal or video monitor.

HDMI Driver Board vs Android Board vs X86 Board

How to Match the Controller Board to the LCD Panel

1. Confirm the Native Resolution

The controller must support the panel’s exact native resolution and timing.

Common resolutions include:

• 800×480

• 1024×600

• 1024×768

• 1280×720

• 1280×800

• 1366×768

• 1920×1080

A controller may accept a 1920×1080 HDMI input while outputting 1024×768 to the panel through its scaler. This does not mean it can drive every 1024×768 LCD automatically.

Read LCD Resolution Explained for a detailed comparison of common panel formats.

2. Confirm the LCD Interface

The board output must match the display interface:

• Parallel RGB or TTL

• Single-channel LVDS

• Dual-channel LVDS

• MIPI DSI

• eDP

An HDMI input does not determine the panel-side output. One HDMI controller may output LVDS, while another outputs eDP.

Review How to Choose the Right TFT Display Interface before selecting the board.

3. Compare the Connector Pinout

The controller cable and LCD connector must use the correct:

• Pin count

• Connector pitch

• Signal order

• Logic voltage

• Ground arrangement

• LVDS pair mapping

• Backlight connections

The article TFT LCD Connector Pinout Guide explains why matching the number of pins alone is unsafe.

4. Match the LCD Logic Voltage

The controller must supply the correct voltage and current to the panel logic.

An incorrect supply can cause:

• No image

• Unstable operation

• Permanent panel damage

• Excess current

• Failed startup

5. Confirm the Backlight Driver

Check whether:

• The controller has an integrated LED driver.

• The LCD requires an external backlight driver.

• The output-voltage range supports the LED string.

• The current matches the panel specification.

• PWM dimming and enable signals are compatible.

Read TFT LCD Backlight Guide before connecting the LED circuit.

6. Confirm the Firmware

A video controller board normally stores panel-specific parameters in firmware.

These may include:

• Native resolution

• Pixel clock

• Horizontal timing

• Vertical timing

• LVDS mapping

• Color depth

• Backlight behavior

• On-screen display settings

A board that is electrically compatible can still show an unstable, shifted, or blank image if the firmware is configured for another LCD.

Controller rule: Board model, firmware version, cable pinout, and LCD model should be treated as one validated combination.

LVDS Controller Board Selection

LVDS is common in industrial TFT LCDs from approximately 7 inches to large monitor sizes.

Before selecting an LVDS controller, confirm:

• Single-channel or dual-channel LVDS

• Number of data pairs

• Pixel clock range

• 6-bit or 8-bit color depth

• VESA or JEIDA mapping

• Panel logic voltage

• Connector pin assignment

• Backlight-driver requirement

VESA vs JEIDA

A mismatch between VESA and JEIDA LVDS mapping may produce:

• Incorrect colors

• Color banding

• Wrong grayscale

• Reduced color depth

Some boards can change the mapping through firmware, jumpers, or configuration menus. Others require a different cable or board design.

eDP Controller Board Selection

eDP is frequently used by Full HD and higher-resolution embedded displays.

Check:

• Number of eDP lanes

• Supported link rate

• Panel logic voltage

• AUX communication

• Hot-plug detection

• Backlight-enable and PWM signals

• EDID handling

• Connector pinout

An X86 main board may provide a native eDP output. An Android board may also support eDP depending on the processor and board design. A basic HDMI controller requires an HDMI-to-eDP conversion solution if it does not provide eDP directly.

MIPI DSI Controller Selection

MIPI DSI is common on compact, portrait, and high-resolution embedded displays.

It usually requires more panel-specific software work than a basic LVDS display.

Confirm:

• Number of MIPI lanes

• Lane speed

• Lane order and polarity

• Command mode or video mode

• Panel-driver IC

• Initialization commands

• Reset timing

• Power sequence

• Touch-controller communication

A standard HDMI signal cannot be connected directly to a MIPI LCD through a passive cable. An active bridge or dedicated controller is required.

How Touchscreen Integration Changes the Controller Choice

The LCD interface and touch interface are normally separate.

A projected capacitive touch panel may communicate through:

• USB

• I²C

• Serial interface

A resistive touch panel may require:

• A dedicated resistive-touch controller

• USB conversion

• Four-wire or five-wire analog input

Touch With an HDMI Driver Board

The video travels through HDMI, while touch data usually returns to the external host through USB.

Touch With an Android Board

The touch controller must have a compatible Android driver. USB touch may be easier to integrate, while I²C touch often requires board-level and firmware configuration.

Touch With an X86 Board

USB touch commonly works through Windows or Linux HID support, but custom functions, multi-touch gestures, calibration, and industrial operating systems may require specific drivers.

Review Capacitive vs Resistive Touch Screens for Industrial Displays for touch-technology selection.

Processor and Graphics Performance

The required processing performance depends on what appears on the screen.

The display resolution also affects the required graphics bandwidth and memory. A Full HD interface generally requires more resources than an 800×480 HMI.

Power and Thermal Design

The controller board, processor, storage, wireless module, LCD logic, touch panel, and LED backlight all consume power.

The total power design should consider:

• Maximum CPU load

• GPU and video decoding

• LCD logic power

• Maximum backlight brightness

• USB peripheral power

• Wi-Fi or cellular transmission

• Storage activity

• Startup current

• Operating temperature

Video Driver Board

Usually produces less heat than a complete Android or X86 computing board, although high-power backlight drivers may still require thermal management.

Android Board

Heat depends on processor load, video decoding, wireless communication, and enclosure ventilation.

X86 Board

Often requires the most careful thermal design, particularly with higher-performance processors, sealed enclosures, and continuous industrial workloads.

Thermal rule: Validate the board and LCD together inside the final enclosure. A platform that works on an open test bench may overheat after installation behind a high-brightness display.

Common LCD Controller Board Selection Mistakes

Mistake 1: Choosing the Board Only by HDMI Input

The buyer assumes that every HDMI controller can drive every LCD.

Better approach: Confirm the panel-side interface, resolution, timing, firmware, voltage, and backlight output.

Mistake 2: Matching Only the LCD Resolution

The controller and panel both support 1280×800, but the panel uses MIPI while the board outputs LVDS.

Better approach: Match the interface protocol and electrical specification, not only the pixel count.

Mistake 3: Using a Passive Cable for Protocol Conversion

A cable is expected to convert HDMI to MIPI or LVDS to eDP.

Better approach: Use an active bridge, scaler, or controller designed for the required conversion.

Mistake 4: Ignoring Firmware

The board hardware appears compatible, but it contains timing firmware for another LCD.

Better approach: Request a programmed controller matched to the exact panel model.

Mistake 5: Selecting Android Before Confirming the Application

The board is chosen because Android is familiar, but the required program only runs on Windows.

Better approach: Select the operating system and software architecture before selecting the processor board.

Mistake 6: Selecting X86 When Only Video Conversion Is Needed

A complete PC board is used to perform a task that a simple HDMI controller could handle.

Better approach: Avoid unnecessary cost, heat, boot time, and software maintenance.

Mistake 7: Ignoring Touch Drivers

The display image works, but touch is not recognized by the operating system.

Better approach: Confirm the touch-controller model, communication interface, driver, and supported operating system.

Mistake 8: Underestimating Power Supply Capacity

The board restarts when the backlight reaches maximum brightness or USB devices are connected.

Better approach: Calculate peak system consumption and include a suitable power margin.

Mistake 9: Testing Only at Room Temperature

The controller starts normally in the laboratory but fails during cold startup or high-temperature operation.

Better approach: Test the complete system across the specified environmental range.

Why the Screen Is White, Black, Flickering, or Distorted

For a wider diagnostic workflow, review Industrial LCD Troubleshooting: White Screen, Flickering, Scrambled Image, and Image Sticking.

Controller Selection by Application

LCD Controller Board RFQ Checklist

Provide the following information when requesting a controller board or complete display kit:

• LCD model: Complete panel model and revision.

• LCD datasheet: Electrical, timing, pinout, and mechanical information.

• Screen size: Required diagonal dimension.

• Resolution: Native panel resolution.

• LCD interface: RGB, TTL, LVDS, MIPI DSI, or eDP.

• Connector: Pin count, pitch, contact direction, and position.

• Video source: HDMI, VGA, DVI, DP, camera, or onboard processor.

• Operating system: None, Android, Windows, Linux, or another platform.

• Application: Monitor, kiosk, HMI, medical device, POS, machine vision, or other equipment.

• Touch panel: PCAP, resistive, in-cell, or no touch.

• Touch interface: USB, I²C, serial, or analog.

• Brightness: Target LCD luminance.

• Backlight: LED voltage, current, strings, PWM, and enable requirements.

• Audio: Speaker or headphone output requirement.

• Network: Ethernet, Wi-Fi, Bluetooth, or cellular requirement.

• Peripheral I/O: USB, serial, CAN, GPIO, camera, or storage.

• Temperature: Required operating and storage range.

• Power input: Available voltage and current.

• Mechanical limit: Board size, connector direction, and enclosure space.

• Quantity: Prototype quantity and forecast annual demand.

• Lifecycle: Expected years of production and maintenance.

For the fastest evaluation, send the original LCD datasheet, photos of the panel connector, required video input, operating system, touch-controller model, and mechanical drawing.

Frequently Asked Questions

Can a bare TFT LCD connect directly to HDMI?

Normally no. Most bare TFT panels use RGB, LVDS, MIPI DSI, or eDP. An LCD controller board is required to convert HDMI into the panel’s native signal and timing.

Can one HDMI LCD controller drive different screen sizes?

Possibly, but only when the board hardware, output interface, firmware, resolution, voltage, backlight driver, and cable are compatible with each panel.

Is an LCD driver board the same as an Android board?

No. A basic driver board converts external video, while an Android board contains a processor and operating system that can run applications and generate its own display content.

Should I choose Android or X86 for an industrial touchscreen?

Choose Android for an Android app, multimedia terminal, or lightweight touch interface. Choose X86 when the project requires Windows, PC-class Linux, industrial software, machine vision, or higher computing performance.

Can an HDMI controller board drive a MIPI LCD?

Only when the board includes an active HDMI-to-MIPI bridge and the correct panel initialization, lane configuration, timing, voltage, and connector design. A passive cable cannot perform the conversion.

Why does the controller board show a white screen?

Possible causes include incorrect firmware, missing image data, wrong timing, missing panel power, an incorrect cable, a reset problem, or missing MIPI initialization.

Can the controller scale HDMI video to the LCD resolution?

Many video driver boards include a scaler, but the supported input and output resolutions depend on the chipset and firmware. The output must still match the LCD’s native timing.

Does a controller board include a backlight driver?

Some boards include one, while others provide only control signals or require an external LED driver. Confirm the supported LED voltage, current, number of strings, PWM input, and maximum power.

Can USB touch connect to an HDMI LCD controller?

The touch panel normally connects through USB to the external host rather than through the HDMI video signal. The host operating system must support the touch controller.

Does an Android board support every MIPI or LVDS LCD?

No. The board must support the panel resolution, interface, lane or channel configuration, timing, voltage, initialization, connector, and backlight requirements.

Why does Windows show the wrong resolution on an embedded LCD?

The cause may involve EDID data, BIOS output settings, graphics drivers, custom timing, or incorrect panel firmware. The LCD’s native timing should be configured in the complete X86 system.

What files are needed to program an LCD driver board?

The supplier normally needs the exact LCD model, official datasheet, timing table, interface specification, pinout, backlight data, and required input configuration.

Final Recommendation

Select the LCD controller architecture according to the work the system must perform.

Use an HDMI or VGA driver board when an external computer or video device already generates the content. Use an Android main board when the display must run a standalone Android application with touch and network functions. Use an X86 board when the equipment requires Windows, industrial Linux, PC software, high processing performance, or complex peripheral support.

After selecting the platform, verify the exact LCD resolution, interface, pinout, voltage, timing, firmware, backlight, touch controller, operating system, power budget, and mechanical space.

Do not order a controller based only on screen size, HDMI input, connector appearance, or resolution.

The most reliable solution is a validated combination of panel, controller board, firmware, cable, touch system, backlight driver, power supply, and enclosure.

Need Help Matching an LCD Controller Board?

Send the TFT LCD model, datasheet, resolution, interface, connector pinout, required video input, operating system, touch-panel information, backlight specification, application, mechanical drawing, and expected quantity. Toroson can help compare HDMI/VGA driver boards, RK3568 Android boards, X86 main boards, cables, and complete display kits.

Send Your LCD and Controller Requirements
