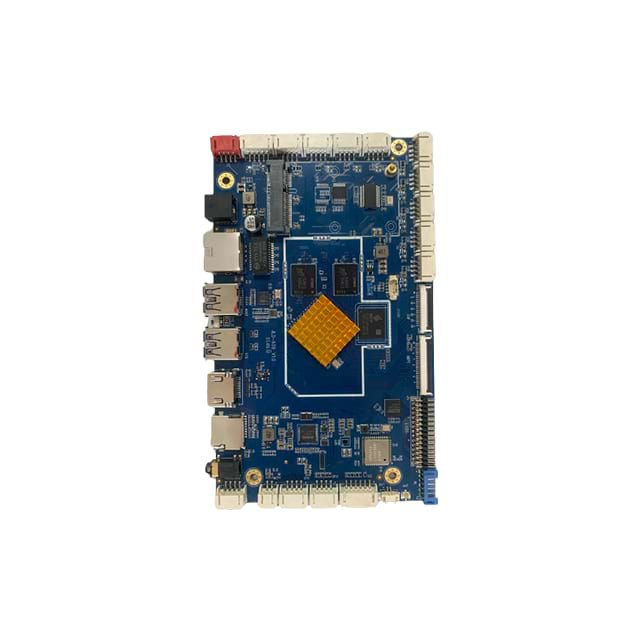

The RK3568 Android Board is a high-performance embedded single-board computer (SBC) powered by the Rockchip RK3568 processor. This Android-ready development board delivers robust computing capabilities, rich peripheral interfaces, and flexible connectivity — making it an ideal platform for industrial automation, digital signage, kiosks, HMI (Human Machine Interface), smart terminals, and OEM embedded solutions.
Built for volume deployment and long-term production, this board supports Android operating systems with optimized graphics and multimedia performance, making it a go-to choice for engineers, developers, and procurement teams requiring a reliable industrial Android SBC supplier.
Quad-core Cortex-A55 CPU architecture delivers efficient multi-tasking and responsiveness.
Integrated GPU for smooth graphics rendering, video decoding, and UI acceleration.
Ideal for Android-based solutions requiring stable performance and power efficiency.
Pre-integrated with Android OS (customizable) for rapid application deployment.
Native support for Google frameworks, multimedia codecs, and touchscreen GUIs.
Multiple expansion headers and peripheral interfaces including USB, SATA, Ethernet, UART, SPI, I2C and more.
HDMI/mipi display support for flexible UI integration on screens of various sizes.
Gigabit Ethernet and wireless options for high-speed network connectivity.
Suitable for 24/7 industrial operation, automation controllers, and machine vision displays.
Optimized for long lifecycle deployments with consistent software support.
Robust I/O and signal stability for integrated deliverables.
Main Parameter | |
CPU | RK3568 Quad-core Cortex-A55 64-bit processor，Maximum frequency 2.0GHz |
GPU | ARM G52 2EE support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 |
NPU | 1TOPS |
Memory | 2G/4G/8G DDR4 optional |
EMMC | 16G-128G optional |
Display | Support LVDS（Dual 8，1920*1080），EDP，MIPI，HDMI |
Audio output | Stereo, support Dolby |
Audio interface | 3.5mm Headphone interface，4P2.0 Headphone interface，2P2.0 Microphone interface，4P2.0 Speaker interface |
Ethernet | 10/100/1000M |
WIFI | 2.4G/5G WiFi BT |
OS | Android 11/ Ubuntu 20.04 |
TP | I2C and USB interface TP |
Memory card type | TF-CARD |
USB interface | Built-in USB 2.0 socket（4 pcs）、extraposition USB 3.0 HOST（1pcs）、extraposition OTG（1pcs） |
Serial port | Five in all，Variety optional，TTL（1-5pcs）、RS232（0-4pcs）、RS485（0-2pcs） |
RTC | Support power off clock memory, support automatic switch |
Camera | MIPI Camera |
PCB size | 158mm*95mm*1.5mm |
Power supply | DC12V3A input |
This RK3568 Android Board is designed for a broad range of B2B embedded computing applications including:
Industrial Automation Systems – PLC front modules, process control HMIs, automated monitoring.
Digital Signage & Kiosks – Android-driven signage platforms with multimedia playback support.
Smart Retail & POS Terminals – Interactive customer terminals and self-service kiosks.
Medical Devices & Healthcare Interfaces – Android systems for patient monitoring and data display.
Transportation & Fleet Solutions – Infotainment and control displays for vehicles, terminals, and dispatch centers.
OEM Embedded Products – Custom branded SBC integration for specialized hardware projects.
| Procurement Aspect | Buyer Benefit |
|---|---|
| Industry-Ready Reliability | Designed for long term industrial deployments |
| Flexible Volume Procurement | Sample to high-volume orders supported |
| Customization Options | Android customization, I/O extensions, branding |
| Global Support & Documentation | Datasheets, integration guides, SDK support |
| Competitive Pricing | Enterprise pricing & contract procurement |
| Integration Assistance | Engineering support for system integration and testing |
We support engineering and procurement teams with documentation, integration examples, firmware support, and mass deployment assistance.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
JLS-Z3568-01.pdf
