Our X86 Board Series delivers a comprehensive lineup of high-performance, reliable x86-based embedded boards and single-board computers (SBCs) engineered for demanding industrial, embedded, automation, IoT and OEM systems. These boards combine the computing power of Intel x86 architecture with robust interfaces, extended temperature support, and flexible expansion options — ideal for mission-critical applications where performance, stability, and long-term supply matter.
As an experienced industrial embedded board supplier, we support B2B procurement, bulk orders, OEM customization, technical integration assistance, and long-term availability planning for enterprise customers.
Our X86 boards leverage Intel® Celeron™, Atom™, Core™ and Pentium™ class processors (depending on model) to deliver:
Strong single-thread and multi-thread performance
Power efficiency for embedded/edge systems
Compatibility with standard PC OS stacks (Windows, Linux)
Intel x86 Cores – High compatibility with PC-class software
Extended I/O Options – RS-232/485, multiple Ethernet, USB expansion
Multimedia Support – GPU and display interfaces for HMI/GUI systems
Scalable Performance – From low-power Atom to high-performance Core processors
Power Efficiency – Designed for 24/7 operation in industrial environments
Robust Design – EMI/ESD protections, industrial connectors

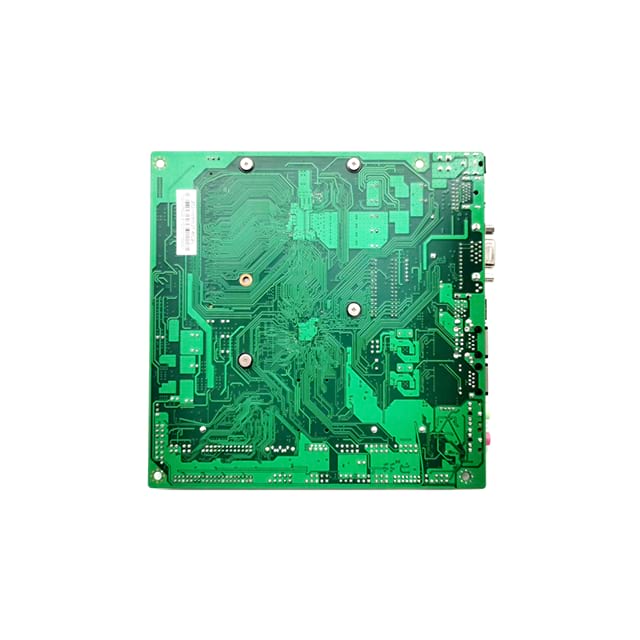

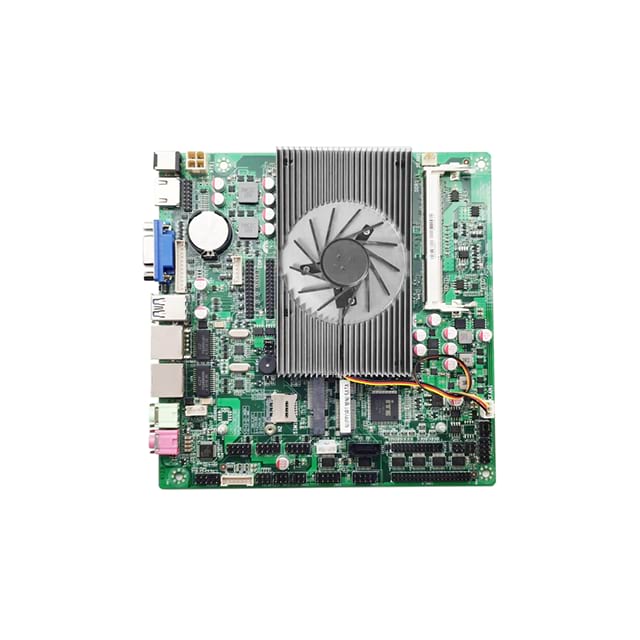

Motherboard size | - ITX 170mmX170mm |
CPU | - Intel® Ivy Bridge i3-3217U/i5-3317U |
Memory | Onboard 1x 204-pin DDR3 SO-DIMM memory slot - The maximum supported memory is 8GB |
Expansion slot | 1*mPCIE (supporting Wifi + Bluetooth/4G module) - 1*SIM card slot |

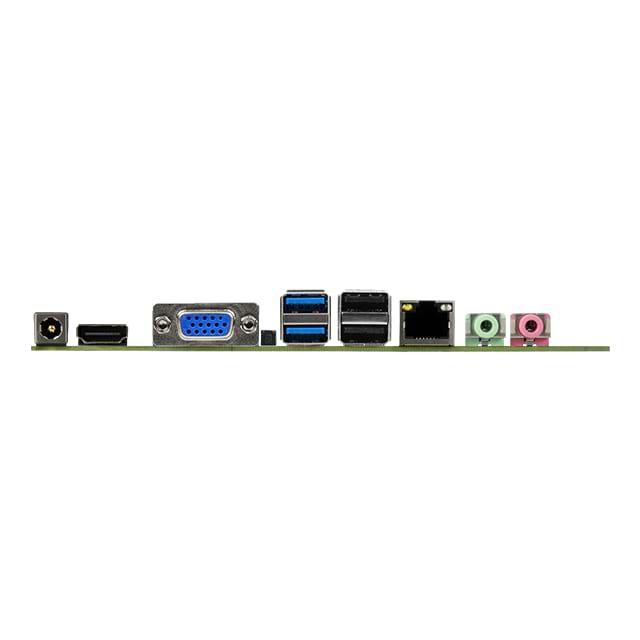

Backplane interface | -1*DC -1*HDMI -1*VGA -1*CLR_CMOS -2*USB3.2 Gen1（5Gbps） -2*USB2.0 （1*LAN2） -1*LAN1 -1*LINE-OUT -1*MIC-IN |
Built in interface | -1*F_AUDIO -1*SPEAKER -1*PS/2 -1*GPIO -3*F_USB（6*USB2.0） -1*INCN -1*LVDS -1*EDP2 -1*COM232 -1*SATA -1*SATA_PWR -1*PRINT -1*CFAN -1*F_PANEL -1*SYS_FAN -1*4Pin ATX -1*HDMI -1*JVGA |
BIOS | - AMI BIOS |
Power management | Supports Advanced Configuration and Power Interface (ACPI) for advanced power management - Supports Wake on LAN (WOL) for S3 and S4 states, as well as power-on boot |
Display | Supports synchronous/asynchronous dual display (HDMI/VGA/LVDS/EDP1) |
Backlight adjustment | - Display configuration and backlight adjustment method: - Display configuration: LVDS+EDP1+HDMI+VGA - Backlight adjustment method: Adjusted through the LVDS system, and adjusted under EDP1 Bios |
Network | - 1 x Realtek 8111H/8111G Gigabit Ethernet |
Audio | - Onboard HS-100B USB audio decoding controller; power amplifier NS4251 3W@4Ω MAX It is recommended that the custo mer use speakers with 4 ohms and 3 watts or 8 ohms and 2 watts |
I/O chip | - ITE8784E-I |
power supply | - 4 PIN ATX / DC 12V |
environment | - operation temperature：0℃~50℃ |
operating system | Windows 7 /Windows 10 /Linux |
Typical X86 embedded boards include:
Dual/Multiple LAN / GbE / PoE network ports
USB 3.0 / USB 2.0, SATA, PCIe, COM (RS-232/422/485)
GPIO, I2C, SPI expansion for sensors and industrial equipment
Optional LVDS/MIPI/eDP display interfaces for HMI systems
Many X86 boards in the series are designed with:
Extended operating temperature ranges (e.g., -20 °C to +70 °C)
Stable power management for harsh environments
Long product availability suitable for industrial lifecycle planning
We provide customization options to align with your system integration needs:
BIOS optimization and image preload
I/O port reconfiguration and connector customizations
Ruggedization (heatsinks, conduction cooling)
Software support (drivers, SDKs, OS integration)
Our X86 boards are deployed across a wide range of enterprise and industrial systems, including:
| Industry / System | Typical Use Case |
|---|---|
| Industrial Automation | PLC hosts, machine vision controllers |
| IoT & Edge Computing | Intelligent gateways & data collectors |
| Medical Devices | Embedded computing platforms for instruments |
| Transportation & Fleet | Rugged onboard terminals |
| Digital Signage | High-quality graphics and content playback |
| OEM Electronics | Custom appliances and branded embedded systems |
| Procurement Feature | Benefit |
|---|---|
| MOQ Flexibility | Supports sample orders, prototypes, mid to high volume contracts |
| Volume Pricing | Competitive enterprise pricing for bulk procurement |
| Customization Services | BIOS, I/O, mechanical and software customization |
| Sample Support | Evaluate board performance before production deployment |
| Engineering Support | Detailed datasheets, reference designs, driver & OS support |
| Long-Term Availability | Stable supply planning for OEM life cycles |
We partner with sourcing and engineering teams to ensure delivery timelines, documentation, and technical support align with customer expectations.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
JLS-X0086-01.pdf
