LCD Resolution Explained: 800×480 vs 1024×600 vs 1280×800 vs 1080p

LCD resolution determines how many individual pixels a display can use to create text, icons, charts, images, and video. However, selecting the highest available resolution does not automatically produce the best display system.

A higher-resolution TFT LCD may provide sharper images, but it also requires more processing power, memory, interface bandwidth, and software resources. The right choice depends on the screen size, viewing distance, user interface, processor platform, application environment, and total project cost.

Quick Selection Recommendation

Choose 800×480 for simple industrial interfaces, legacy equipment, compact HMIs, and cost-sensitive embedded systems.

Choose 1024×600 when you need a wider modern interface with more room for menus, charts, and control elements.

Choose 1024×768 for traditional 4:3 industrial equipment, medical systems, and replacement projects.

Choose 1280×800 for modern industrial HMIs, medical devices, smart terminals, and detailed graphical interfaces.

Choose 1920×1080 when the system must display fine detail, video, camera images, dense dashboards, or professional visual content.

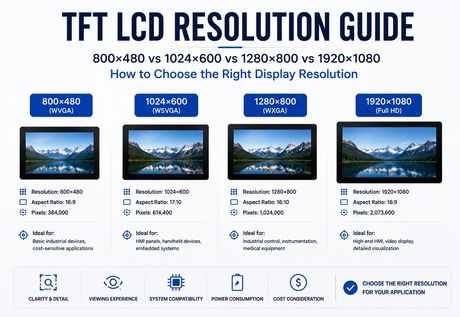

Common TFT LCD Resolutions at a Glance

The same resolution can appear very different on different screen sizes. Resolution must therefore be evaluated together with diagonal size, pixel density, viewing distance, brightness, interface, and user-interface design.

What Does LCD Resolution Mean?

LCD resolution is written as the number of horizontal pixels multiplied by the number of vertical pixels.

For example, an 800×480 TFT LCD contains:

• 800 pixels across the horizontal direction

• 480 pixels across the vertical direction

• A total of 384,000 addressable pixels

Each color pixel normally contains red, green, and blue subpixels. The panel controls these subpixels to create different colors and brightness levels.

Important distinction: Resolution describes the number of pixels. Screen size describes the physical diagonal dimension. A larger display does not automatically have a higher resolution, and a smaller display does not automatically have fewer pixels.

Resolution vs Screen Size: What Is the Difference?

Two LCD panels can have the same 800×480 resolution but different physical sizes.

For example, 800×480 is commonly used on 5-inch, 7-inch, 8-inch, and 10.2-inch displays. The total number of pixels remains the same, but each pixel becomes physically larger as the panel size increases.

This affects:

• Perceived image sharpness

• Text smoothness

• Icon detail

• Recommended viewing distance

• Touch-target size

• Space available for interface elements

A compact 5-inch 800×480 screen can appear sharper than a 10.2-inch 800×480 screen because the same pixel count is spread across a smaller area.

However, the larger screen may still be easier to use when operators need large buttons, large numbers, and greater viewing distance.

The existing TFT display size and resolution selection guide explains how mechanical space, viewing distance, and application type affect the choice of panel size.

What Is Pixel Density?

Pixel density measures how closely the pixels are packed together. It is normally expressed as PPI, or pixels per inch.

A higher PPI generally produces:

• Smoother text edges

• More detailed icons

• Finer lines and graphs

• Less visible pixel structure

• Better appearance at a close viewing distance

A lower PPI can still be suitable when:

• The display is viewed from farther away.

• The interface uses large text and buttons.

• The application shows simple values and status information.

• Processor and bandwidth resources are limited.

• The equipment must remain compatible with a legacy display platform.

Engineering rule: Select enough pixel density for the expected viewing distance and user-interface detail. Additional pixels that users cannot perceive may increase cost and system complexity without improving usability.

800×480 WVGA LCD: When Is It the Right Choice?

The 800×480 resolution remains common in industrial control, embedded electronics, automotive equipment, and legacy HMI platforms.

It provides enough space for:

• Large control buttons

• Machine status information

• Basic trend graphs

• Warning messages

• Navigation menus

• Simple camera previews

Advantages of 800×480

• Lower pixel-processing load than higher resolutions

• Works with many mature MCU and MPU platforms

• Available in a wide range of panel sizes

• Commonly supported by RGB and TTL interfaces

• Suitable for large text and touch targets

• Often easier to integrate into legacy systems

Limitations of 800×480

• Limited space for dense dashboards

• Small text may appear less smooth on larger panels

• Not ideal for detailed photographs or medical images

• Modern operating systems may require interface scaling

• Video and high-density layouts may look compressed

The Innolux AT070TN94 7-inch 800×480 TFT LCD uses a 50-pin TTL RGB interface and is suited to industrial HMIs, embedded controllers, and equipment requiring a mature WVGA platform.

For projects requiring a larger physical display while retaining 800×480 compatibility, the Innolux AT102TN03 V.8 10.2-inch TFT LCD provides the same resolution on a larger active area.

Best fit: Choose 800×480 when system compatibility, stable supply, simple graphics, and manageable processing requirements matter more than very high pixel density.

1024×600 WSVGA LCD: A Practical Widescreen Upgrade

The 1024×600 resolution provides approximately 60% more pixels than 800×480.

Its wider format is suitable for:

• Modern industrial control interfaces

• Navigation systems

• Automotive infotainment units

• Smart home terminals

• Portable medical equipment

• Android and Linux embedded devices

Advantages of 1024×600

• More horizontal room for menus and data panels

• Sharper text than 800×480 at a similar display size

• Suitable for split-screen layouts

• Works well with many embedded operating systems

• Available in common 7-inch, 8-inch, and 10.1-inch formats

Limitations of 1024×600

• Requires more memory and interface bandwidth than 800×480

• May not be directly supported by older MCU platforms

• GUI assets may need to be redesigned

• Not interchangeable with 800×480 panels without controller changes

The Innolux NJ080IA-10D 8-inch 1024×600 TFT LCD uses a 40-pin LVDS interface and is intended for automotive and industrial applications requiring a widescreen layout.

Best fit: Choose 1024×600 when the interface needs more room than WVGA but the system does not require the bandwidth and cost of WXGA or Full HD.

1024×768 XGA LCD: Why 4:3 Remains Important

The 1024×768 resolution uses a traditional 4:3 aspect ratio. Although many consumer devices have moved to widescreen formats, XGA remains widely used in industrial, medical, marine, laboratory, and legacy control equipment.

A 4:3 display provides more vertical space than a similarly sized widescreen panel. This is useful for:

• Vertical parameter lists

• Waveform displays

• Medical monitoring screens

• Industrial control software designed for 4:3 panels

• Legacy equipment replacement

• Data tables and diagnostic menus

Advantages of 1024×768

• Balanced horizontal and vertical workspace

• Strong compatibility with established industrial software

• Common in 10.4-inch, 12.1-inch, and 15-inch industrial panels

• Suitable for charts, waveforms, and data-heavy control screens

• Often available with LVDS interfaces and industrial temperature ratings

Limitations of 1024×768

• Does not match modern 16:9 video content

• Requires enclosure space suitable for a taller panel

• Some modern Android layouts are designed mainly for widescreen displays

The 10.4-inch 1024×768 IPS TFT LCD combines an XGA resolution, 4:3 aspect ratio, IPS viewing performance, and LVDS interface for industrial and embedded systems.

A larger option is the 12.1-inch 1024×768 LVDS TFT LCD module, which provides a larger viewing area for machine interfaces and control stations.

Best fit: Choose 1024×768 when vertical workspace, industrial software compatibility, or replacement of an existing 4:3 display is more important than matching a modern widescreen format.

1280×800 WXGA LCD: A Balanced Modern Resolution

The 1280×800 resolution contains more than one million pixels and uses a 16:10 aspect ratio.

It provides additional vertical space compared with 1280×720 while retaining a modern widescreen layout.

Common applications include:

• Industrial tablets

• Advanced machine interfaces

• Medical equipment

• Portable diagnostic systems

• Smart home panels

• POS terminals

• Embedded Linux and Android systems

Advantages of 1280×800

• Sharper text and icons at common 10.1-inch sizes

• More room for charts, menus, and status areas

• Suitable for modern graphical user interfaces

• Good balance between visual detail and processing demand

• Works well in landscape and portrait layouts

Limitations of 1280×800

• Requires greater bandwidth than WVGA and WSVGA

• May require LVDS or MIPI DSI rather than a basic RGB interface

• Uses more frame-buffer memory

• Small interface elements may require software scaling

The Innolux EE101IA-01D 10.1-inch 1280×800 IPS LCD cell provides a WXGA format for OEM manufacturers requiring flexible integration.

For a complete module option, buyers can also review the Innolux NJ101IA-01S 10.1-inch 1280×800 IPS TFT LCD.

Best fit: Choose 1280×800 for a modern interface that needs more visual detail and vertical workspace without moving to the much heavier processing requirements of Full HD.

1920×1080 Full HD LCD: When Is It Necessary?

A 1920×1080 TFT LCD contains more than two million pixels. It provides over five times the pixel count of an 800×480 display.

Full HD can be useful for:

• Medical imaging systems

• Camera and video monitoring

• Inspection equipment

• Professional instrumentation

• High-density industrial dashboards

• Large operator stations

• Detailed graphical and multimedia content

Advantages of 1920×1080

• Very sharp text and graphics

• Supports detailed images and video

• More space for multi-window layouts

• Suitable for modern desktop-style interfaces

• Strong compatibility with HDMI and standard video sources when a controller board is used

Limitations of 1920×1080

• Higher interface bandwidth

• Greater GPU and memory requirements

• Higher power demand

• More complex PCB and signal-integrity design

• Small text may become difficult to read without UI scaling

• Higher panel and controller cost

For compact systems requiring unusually high pixel density, the 5.7-inch 1920×1080 high-brightness TFT LCD combines Full HD resolution with a compact panel format.

For larger equipment, the 21.5-inch 1920×1080 eDP TFT LCD module provides a larger visual workspace for industrial and professional applications.

Best fit: Choose Full HD when detailed images, multiple windows, video, or dense information provides a measurable benefit. Do not select it only because it is the highest available resolution.

800×480 vs 1024×600 vs 1280×800 vs 1920×1080

How Resolution Affects the Display Interface

Every pixel must receive image data. As resolution increases, the amount of information transferred during every frame also increases.

The interface must therefore support:

• The total pixel count

• The required refresh rate

• The selected color depth

• The pixel clock frequency

• The cable length

• The number of signal lanes or channels

RGB or TTL

Parallel RGB and TTL interfaces are common on compact and lower-resolution TFT LCD modules. They are straightforward but require many signal lines.

They are frequently used with 320×240, 480×272, and 800×480 displays.

LVDS

LVDS transfers display data through differential signal pairs. It is common in medium-size industrial panels and supports higher data rates with improved signal stability.

LVDS is widely used for 800×600, 1024×600, 1024×768, and 1280×800 displays.

MIPI DSI

MIPI DSI is frequently used in compact, high-resolution, and portrait-format displays. It reduces the number of physical data lines but requires a compatible processor and correct initialization commands.

eDP

Embedded DisplayPort is commonly used for higher-resolution displays, including WXGA and Full HD panels. It supports high data rates with fewer signal lanes than traditional parallel interfaces.

For a detailed technical comparison, read How to Choose the Right TFT Display Interface.

Compatibility warning: A processor that supports the required resolution may still be incompatible with the panel interface. Resolution, timing, pin assignment, signal voltage, lane count, color mapping, and backlight control must all be verified.

How Resolution Affects Memory and Processing

The frame buffer stores image data before it is sent to the LCD.

As the number of pixels increases, the amount of required memory also increases.

For example, at the same color depth:

• A 1024×600 frame requires more storage than an 800×480 frame.

• A 1280×800 frame requires more storage than a 1024×600 frame.

• A 1920×1080 frame requires several times more storage than an 800×480 frame.

Higher resolution can also increase:

• GPU workload

• Memory bandwidth

• PCB signal-design difficulty

• Software rendering time

• Boot time

• Power consumption

• Thermal load

An MCU that handles a simple 800×480 interface smoothly may not be able to render animations or video efficiently at 1920×1080.

System-level principle: Select the display resolution together with the processor, memory, operating system, interface, and GUI framework. Do not finalize the panel before confirming that the host platform can drive it reliably.

Does Higher Resolution Increase Power Consumption?

Higher resolution can increase system power consumption, but the relationship is not always direct.

The total power demand is influenced by:

• Backlight brightness

• Panel size

• Driver IC design

• Refresh rate

• Interface type

• Processor workload

• Memory activity

• Touch-controller operation

The backlight often consumes more power than the pixel-driving electronics. A lower-resolution outdoor display with a 1500-nit backlight may therefore consume more power than a higher-resolution indoor panel with moderate brightness.

Resolution should be considered together with luminance, thermal design, and operating time.

For equipment used outdoors, review the high-brightness and sunlight-readable LCD guide.

Does Higher Resolution Improve Outdoor Readability?

Not necessarily.

Outdoor readability depends mainly on:

• Display brightness

• Ambient contrast

• Surface reflection

• Touch-panel transmission

• Cover-glass structure

• Optical bonding

• Anti-glare or anti-reflective treatment

A high-resolution panel can still be difficult to read when strong reflections cover the image.

Conversely, an 800×480 high-brightness display with a good optical structure may be more readable outdoors than a Full HD panel designed only for indoor use.

The article Anti-Glare vs Anti-Reflective vs Optical Bonding explains how front-surface treatments affect visibility.

How Aspect Ratio Affects LCD Selection

Resolution also determines the aspect ratio, which is the relationship between the display width and height.

4:3 Displays

Common 4:3 resolutions include 320×240, 640×480, 800×600, and 1024×768.

They are useful for:

• Industrial software designed for square-shaped layouts

• Waveforms and vertical data tables

• Legacy equipment replacement

• Medical and laboratory interfaces

16:9 Displays

Common 16:9 resolutions include 1280×720 and 1920×1080.

They are useful for:

• Video and camera content

• Vehicle dashboards

• Wide navigation layouts

• Modern multimedia interfaces

16:10 Displays

The 1280×800 resolution uses a 16:10 aspect ratio. It provides slightly more vertical workspace than 16:9 and is popular in industrial, medical, and embedded products.

Mechanical warning: Changing from a 4:3 display to a widescreen panel normally requires changes to the enclosure, mounting structure, active opening, touch panel, software layout, and possibly the controller board.

Common LCD Resolution Selection Mistakes

Mistake 1: Choosing the Highest Resolution Available

A high-resolution panel is selected because it appears more advanced, even though the interface only shows large buttons and basic text.

Better approach: Match the pixel count to the actual information density and viewing distance.

Mistake 2: Ignoring Processor Capability

The display panel supports Full HD, but the processor cannot render the interface smoothly or provide the required output interface.

Better approach: Confirm resolution, refresh rate, interface, memory, and GPU capability before panel approval.

Mistake 3: Comparing Resolution Without Screen Size

A buyer assumes that every 1280×800 display provides the same visual result.

Better approach: Compare diagonal size, PPI, active area, and intended viewing distance.

Mistake 4: Ignoring Aspect Ratio

A widescreen replacement is selected for equipment whose housing and software were designed around a 4:3 display.

Better approach: Review the physical opening, software layout, touch coordinates, and mounting points before changing format.

Mistake 5: Assuming the Same Resolution Means Compatibility

Two panels both use 1024×768, but the connector, LVDS mapping, power voltage, dimensions, and backlight requirements are different.

Better approach: Compare the complete datasheets and test the replacement with the actual controller.

Mistake 6: Designing the GUI Before Confirming the Panel

Software is developed around one resolution before the selected display model and supply lifecycle are confirmed.

Better approach: Align the software, hardware, mechanical, and procurement teams before finalizing the graphical layout.

Resolution Selection by Application

For additional application guidance, review Which Display Should You Choose for Industrial Equipment?

TFT LCD Resolution Selection Checklist

Before approving a display resolution, confirm the following:

• Screen size: What diagonal size and active area can the enclosure support?

• Viewing distance: How far will the user normally stand from the screen?

• Content type: Will the display show numbers, menus, charts, photos, video, or medical images?

• Text size: What is the smallest text that must remain readable?

• Touch operation: Are the buttons large enough for fingers, gloves, or stylus input?

• Processor: Can the host platform render the native resolution smoothly?

• Memory: Is enough frame-buffer and graphics memory available?

• Interface: Does the processor support RGB, LVDS, MIPI DSI, or eDP?

• Refresh rate: Does the application require static screens, animation, or video?

• Aspect ratio: Does the mechanical and software layout require 4:3, 16:9, or 16:10?

• Power: Can the power supply support the display, processor, and backlight?

• Temperature: Will the complete system operate reliably across the required range?

• Supply lifecycle: Is the selected resolution and panel model suitable for long-term production?

• Software scaling: Can the operating system and GUI framework scale text and icons correctly?

• Replacement compatibility: Does the new panel need to match an existing controller or enclosure?

Recommended workflow: Define the application and viewing conditions first, select the screen size and aspect ratio second, confirm processor and interface capability third, and then choose the final native resolution.

Frequently Asked Questions

Is a higher LCD resolution always better?

No. Higher resolution provides more detail but also increases processor load, memory use, bandwidth requirements, software complexity, and potentially system cost. The best resolution is the one that matches the screen size, viewing distance, interface, and application.

Is 800×480 enough for an industrial HMI?

Yes, when the interface uses large buttons, simple menus, status values, and basic charts. More complex interfaces with multiple data windows may benefit from 1024×600 or 1280×800.

What is the difference between 800×480 and 1024×600?

A 1024×600 LCD contains more pixels and provides more workspace for text, graphics, and menus. It also requires more processing power, memory, and interface bandwidth than an 800×480 panel.

Which is better, 1024×600 or 1280×800?

Choose 1024×600 for a practical widescreen interface with moderate hardware requirements. Choose 1280×800 when sharper text, more vertical space, and a more detailed graphical interface justify the additional system resources.

What is the difference between 1024×768 and 1280×800?

The 1024×768 resolution uses a 4:3 aspect ratio, while 1280×800 uses a wider 16:10 format. XGA is common in established industrial systems, while WXGA is more suitable for modern widescreen interfaces.

Can an 800×480 LCD be replaced by a 1024×600 LCD?

Not as a direct replacement in most cases. The new panel may require a different controller, interface timing, connector, software resolution, enclosure opening, and touch-coordinate configuration.

Does Full HD use more power than 800×480?

The panel-driving and processing system will normally require more resources. However, total display power also depends heavily on the backlight brightness, panel size, refresh rate, and processor efficiency.

Which interface is best for Full HD TFT LCD?

eDP and dual-channel LVDS are common choices. The exact interface depends on the panel model, processor output, cable length, refresh rate, color depth, and system architecture.

Can the same controller board support several resolutions?

Some programmable controller boards support several panel resolutions, but the firmware and output timing must be configured for the exact LCD model. Connector and backlight compatibility must also be checked.

What resolution should I specify in an LCD quotation request?

Provide the preferred native resolution together with the target screen size, aspect ratio, interface, brightness, viewing angle, operating temperature, touch requirement, processor platform, and application.

Final Recommendation

LCD resolution should be treated as a system specification rather than an isolated display feature.

An 800×480 TFT LCD remains practical for simple industrial controls and mature embedded platforms. A 1024×600 display provides a useful widescreen upgrade. A 1024×768 panel remains important for 4:3 industrial and medical equipment. A 1280×800 display offers a strong balance for modern graphical interfaces, while 1920×1080 is most suitable for video, inspection, imaging, and high-density visual content.

Before selecting a resolution, evaluate the screen size, viewing distance, aspect ratio, interface, processor, memory, software, power consumption, temperature range, mechanical design, and long-term supply requirement.

The highest resolution is not always the best choice.

The best TFT LCD resolution is the one that provides clear information without creating unnecessary hardware cost, software complexity, power demand, or integration risk.

Need Help Comparing TFT LCD Resolutions?

Share your target display size, resolution, application, processor platform, interface, brightness, operating temperature, touch requirement, mechanical drawing, and expected annual quantity. Toroson can help compare suitable TFT LCD panels and determine whether 800×480, 1024×600, 1024×768, 1280×800, or Full HD is the better fit for your project.

Send Your LCD Requirements
