Diagnosing failures in industrial a-Si TFT-LCD modules requires a systematic isolation of hardware connections, voltage supply lines, and controller timing parameters. Display issues such as a solid white screen, corrupted pixels (scrambled display), or persistent image artifacts (image sticking) are typically traceable to specific electrical or thermal stresses rather than catastrophic panel failure. Establishing precise root-cause analysis ensures systems maintain their rated 30,000 to 50,000 hours MTBF without unnecessary module scrappage.
When a display malfunctions, field engineers must follow a standard diagnostic sequence to determine if the fault lies within the source driver ICs, the T-CON (Timing Controller) board, or the external cabling.
White Screen Failure (Defective Logic Supply VGH/VGL): A solid white screen occurs when the backlight is operational but the liquid crystals receive no biasing voltage. This indicates that the main logic voltage (VCC/VDD) is failing to reach the panel's internal step-up circuitry, or the source driver IC has entered a reset state.
Scrambled Display (Signal Integrity Degradation): Corrupted or shifting pixel patterns point to a failure in data serialization or transmission. Inspect the LVDS interface differential pairs for trace impedance mismatches or localized EMI.
Image Sticking (Residual Charge Accumulation): Static patterns left on the Active Area after the image changes are caused by DC voltage imbalances across the liquid crystal layer. This is often accelerated when operating near the upper boundary of the operating temp -30°C to +85°C specification.
Oscilloscope Inspection and Troubleshooting of Industrial-Grade LCD Drive Timing Signals
Isolating the issue between firmware configuration and physical layer deterioration prevents incorrect component replacements. The table below delineates the primary markers for both failure domains.
Failure Symptom | Hardware Root Cause | Software/Firmware Root Cause | Diagnostic Action |
White Screen | FPC disconnection; blown internal fuse on T-CON. | Missing panel initialization code (IC Init) in VBIOS. | Measure VCC at the panel input pins; verify 3.3V or 5V logic stability. |
Scrambled Display | Damaged gold fingers; broken single-channel LVDS wire. | Incorrect Pixel Clock (DCLK) frequency or H-Sync timing. | Check eye-diagram on differential lines; verify timing margins against datasheet. |
Image Sticking | Ion contamination in liquid crystal layer from over-temperature. | Incorrect Vcom (Common Voltage) tuning setting on the scalar board. | Cycle power to check for charge dissipation; apply a white raster pattern for 2 hours. |
Hardware issues require checking the mechanical path. A loose connector pin on an 8-bit LVDS link can drop critical bits, shifting the color output and distorting the displayed NTSC color gamut. Software adjustments, conversely, focus on modifying the horizontal and vertical blanking intervals within the controller kernel.
To prevent line-down emergencies due to field failures, industrial procurement teams should verify vendor support criteria prior to deployment. Sourcing modules through verified channels, as outlined in our [Purchasing Guide], guarantees access to specialized technical mitigation resources.
Failure Analysis Reports (8D Methodology): For batch failures, we provide factory x-ray and cross-sectional testing of the a-Si substrate to determine if failures stem from mechanical stress or electrical overstress (EOS).
Warranty Alignment: Standard industrial modules carry a minimum 12-month factory warranty covering component degradation under normal operating parameters.
Extended EOL Availability: When a panel undergoes component updates, we provide hardware-compatible drop-in models with matched electrical specifications to eliminate system redesign expenses.

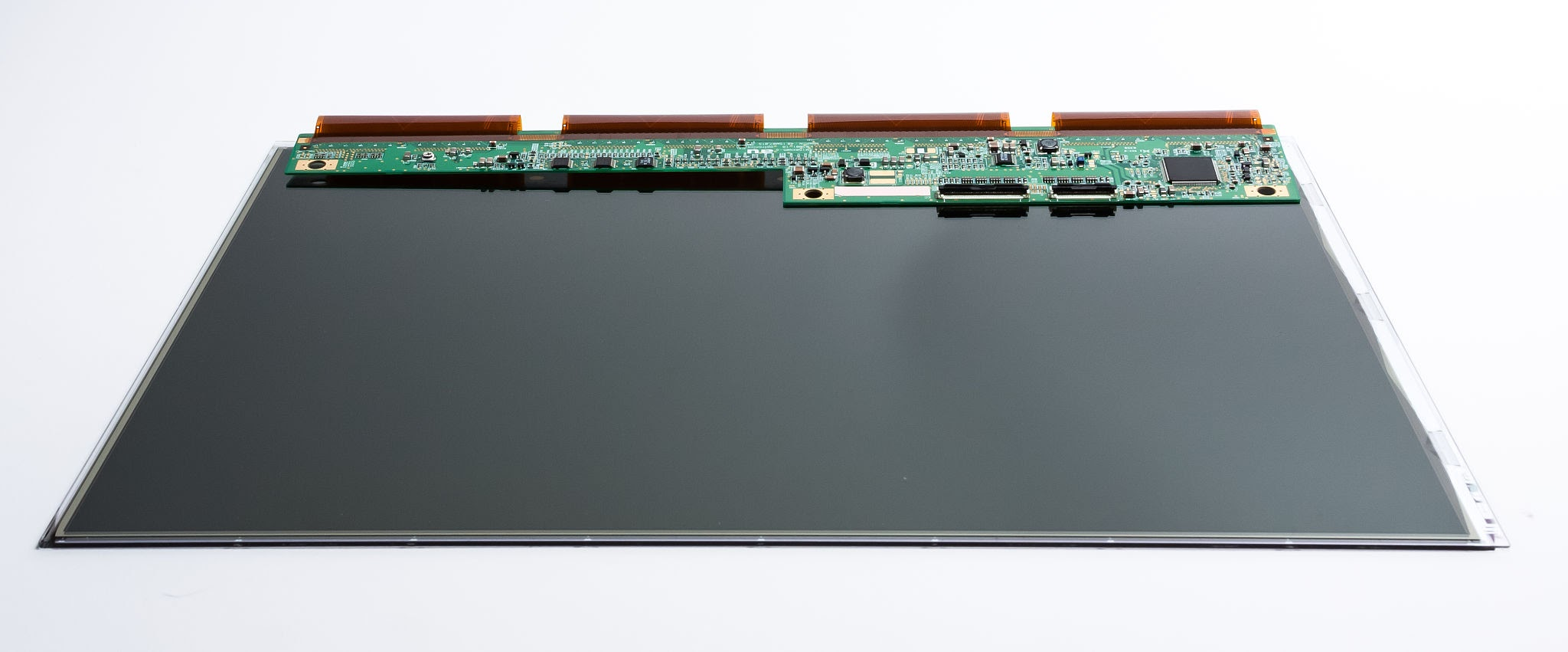

Architecture of the Driver Control and Ribbon Cable Interfaces on the Back of an Original Industrial LCD Panel
Q1: What is the immediate fix for a white screen on a newly integrated Innolux panel?
Check the power sequence. The logic voltage (VCC) must stabilize before the backlight driver turns on. If the backlight fires first, the panel can lock up into a continuous white screen state until power is cycled correctly.
Q2: How do you prevent permanent image sticking on static HMI screens?
Utilize pixel-shifting routines in your software GUI and apply dynamic standby screens. Ensure your controller board allows manual adjustment of the Vcom voltage level, which eliminates the residual DC offset responsible for charge trapping.
Q3: What are the shipping lead times for urgent replacement stock?
Standard industrial replacement models (e.g., 7.0", 10.4", and 15.0" form factors) are held in regional buffer inventory and can be dispatched within 24 to 48 hours to minimize production downtime.
For deep-dive technical support or to download the verification documentation for your display module, review our Purchasing Guide or contact Xiamen Toroson to Request a Quote for Bulk Orders today.
