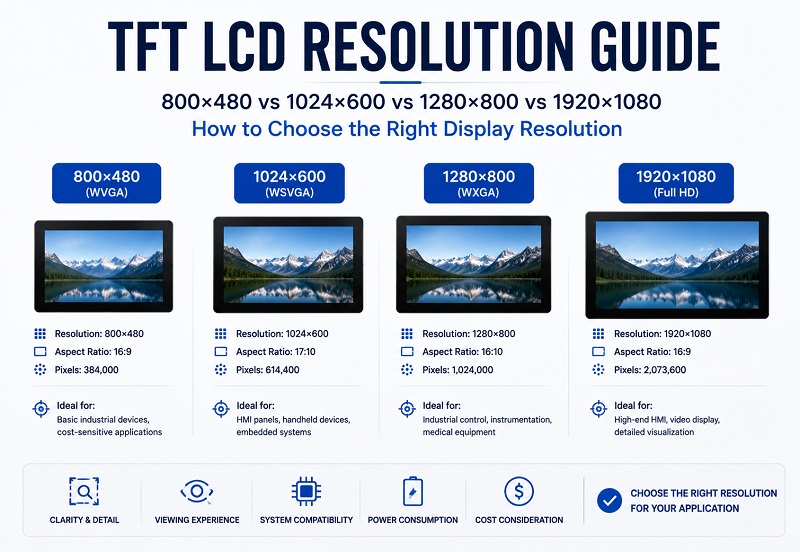

Choosing the correct TFT LCD resolution is one of the most important steps when designing an industrial display system.
Resolution affects image clarity, software layout, processing requirements, power consumption, display cost, and overall user experience.
Many engineers select an LCD only according to screen size, but the same display size can have completely different image quality depending on pixel resolution.
For example, a 7-inch LCD can be available with different resolutions such as 800×480, 1024×600, or higher customized formats. The correct choice depends on the application, viewing distance, interface design, and hardware capability.
800×480 TFT LCD:
Suitable for basic industrial HMI and embedded displays.
Common in 5-inch to 7-inch applications.
Lower cost and lower system requirements.
1024×600 LCD:
Popular for 7-inch and 10.1-inch displays.
Provides better image detail for touch interfaces.
Good balance between cost and clarity.
1280×800 TFT LCD:
Suitable for larger HMIs and industrial terminals.
Provides more workspace for complex interfaces.
Common in 8-inch to 10.1-inch displays.
1920×1080 Full HD TFT LCD:
Designed for high-detail applications.
Suitable for medical, industrial monitoring, and professional displays.
Requires stronger graphics performance.
TFT LCD resolution refers to the number of pixels arranged horizontally and vertically on the display panel.
For example:
800 × 480
↓
800 pixels horizontally × 480 pixels vertically
A higher resolution means more pixels are available to display images, text, icons, and graphical elements.
However, higher resolution does not always mean better performance.
The best TFT LCD resolution depends on:
Screen size
Viewing distance
Software interface design
Processor performance
Required image detail
Power budget
Product cost target
Resolution | Pixel Count | Common Size | Typical Application |
|---|---|---|---|
800×480 | 384,000 pixels | 5 inch / 7 inch | Basic HMI, instruments, embedded displays |
1024×600 | 614,400 pixels | 7 inch / 10.1 inch | Industrial touch panels, POS, smart terminals |
1280×800 | 1,024,000 pixels | 8 inch / 10.1 inch | Industrial HMI, control terminals |
1920×1080 | 2,073,600 pixels | 13.3 inch and above | Medical, monitoring, professional display |
800×480 is one of the most common resolutions used in small and medium-sized embedded TFT LCD modules.
It provides enough pixel space for basic graphical interfaces while maintaining reasonable cost and power consumption.
Lower hardware requirements
Lower image processing workload
Lower power consumption
More affordable LCD modules
Fast interface response
Industrial control panels
Embedded equipment
Small HMI systems
Measurement devices
Portable instruments
A 7-inch 800×480 TFT LCD remains popular because it offers a practical balance between readability and system cost.
However, when the user interface contains many icons, charts, menus, or detailed images, a higher resolution may provide a better experience.
1024×600 has become one of the most widely used resolutions for 7-inch and 10.1-inch industrial displays.
Compared with 800×480, it provides significantly more pixels while keeping hardware requirements manageable.
Better text readability
More space for interface design
Improved image detail
Suitable for touch-based applications
Good balance between cost and performance
1024×600 displays are commonly used in:
Smart home control panels
POS terminals
Industrial HMIs
Vehicle displays
Information terminals
For touch display selection, read: How to Choose the Right Touch Screen for Industrial Displays
1280×800 resolution provides a significant improvement in image detail compared with 800×480 and 1024×600 displays.
With more than one million pixels, this resolution allows engineers to design more complex user interfaces with additional information, larger graphics, and clearer text.
Higher image clarity compared with standard industrial resolutions
More space for dashboards and graphical interfaces
Better readability for detailed information
Suitable for larger touchscreen systems
Improved user experience for professional applications
Industrial automation terminals
Advanced HMI systems
Medical control equipment
Laboratory instruments
Vehicle information displays
Commercial interactive terminals
1280×800 TFT LCD modules are often selected when a product needs more interface space but does not require Full HD performance.
For embedded systems, this resolution provides a good balance between visual quality and hardware requirements.
1920×1080, also known as Full HD or FHD, provides more than two million pixels.
It is commonly used in applications requiring detailed images, professional graphics, video playback, or large information areas.
Excellent image sharpness
Clear small text and graphics
Suitable for high-detail interfaces
Better video and multimedia performance
Professional visual experience
Medical imaging equipment
Industrial monitoring systems
Digital signage
Professional control stations
High-end embedded displays
Security monitoring equipment
For example, a 13.3-inch Full HD TFT LCD can provide a much sharper image compared with lower-resolution panels of the same size.
However, higher resolution also increases system requirements:
More graphics processing capability
Higher memory bandwidth
More powerful display controllers
Higher data transmission requirements
Before selecting a Full HD panel, confirm that the controller board, processor, and interface can support the required resolution.
Related guide: LCD Controller Board Selection Guide: HDMI vs Android vs X86
Resolution cannot be evaluated separately from screen size.
The same resolution can provide different visual experiences depending on the physical display size.
Screen Size | Common Resolution | Application |
|---|---|---|
4.3 inch | 480×272 / 800×480 | Small embedded equipment |
5 inch | 800×480 | Portable HMI and instruments |
7 inch | 800×480 / 1024×600 | Industrial control panels and smart terminals |
10.1 inch | 1024×600 / 1280×800 | Advanced HMI and touch displays |
13.3 inch | 1920×1080 | Medical, industrial monitoring, professional displays |
PPI means pixels per inch.
It describes how densely pixels are arranged on the physical display.
A higher PPI generally provides:
Sharper text
More detailed images
Smoother graphics
Better viewing experience at close distance
For example:
A 7-inch 800×480 display and a 7-inch 1280×800 display have the same physical size, but the higher-resolution panel provides much greater pixel density.
However, higher PPI is not always necessary.
If users view the screen from a distance or only display simple information, a lower resolution may provide better cost efficiency.
Higher resolutions require higher data transmission capability.
The LCD interface should be considered together with resolution.
Resolution Level | Common Interfaces | Consideration |
|---|---|---|
800×480 | RGB / LVDS | Simple controller requirements |
1024×600 | LVDS / MIPI / eDP | Common for industrial touch displays |
1280×800 | LVDS / MIPI / eDP | Requires higher bandwidth |
1920×1080 | eDP / LVDS dual channel / MIPI | Requires careful controller matching |
Learn more about interface selection: How to Choose the Right TFT Display Interface: RGB vs LVDS vs MIPI vs eDP
A high-resolution LCD requires sufficient processor and controller performance.
Problems may include:
Slow graphics response
Low refresh performance
Higher power consumption
System instability
Two 10.1-inch displays may have completely different resolutions and application targets.
Always evaluate:
Content complexity
Viewing distance
User interaction
Software requirements
A display that works for the current interface may become limited when adding:
More data fields
Additional icons
Video functions
Advanced graphics
The ideal TFT LCD resolution depends on the product function, operating environment, user interface complexity, and hardware platform.
For industrial HMI applications, engineers usually balance readability, response speed, and hardware cost.
Recommended choices:
800×480: Basic machine interfaces and simple control panels.
1024×600: Touch HMIs requiring more interface space.
1280×800: Advanced dashboards with charts and multiple control areas.
Industrial HMIs often benefit more from a reliable and readable interface than the highest possible resolution.
Medical applications usually require:
Clear image presentation
Accurate information display
Stable viewing performance
Long product lifecycle
Recommended resolutions:
1280×800 for medium-size medical terminals
1920×1080 for high-detail medical displays
Higher resolution can improve the readability of small text, graphs, and detailed images.
POS terminals usually require touch operation, clear menus, and good user interaction.
Common resolutions:
800×480 for compact terminals
1024×600 for mainstream smart terminals
1280×800 for premium user interfaces
Outdoor systems require more than resolution.
Engineers should also consider:
High brightness
Optical bonding
Anti-reflective coating
Wide temperature operation
Sunlight readability
A high-resolution display without proper optical design may still have poor outdoor visibility.
Related article: High Brightness TFT Display Selection Guide
The 7-inch TFT LCD is one of the most common sizes in embedded applications.
Resolution | Advantages | Suitable Applications |
|---|---|---|
800×480 | Low cost, easy integration, lower processing requirements | Basic HMI, meters, embedded products |
1024×600 | Better clarity and larger interface space | Touch terminals, smart control panels |
For a standard handheld or embedded terminal, 800×480 remains a practical choice.
For modern touch interfaces, 1024×600 often provides a better balance between usability and cost.
10.1-inch TFT LCD modules are widely used in industrial control systems, smart panels, and commercial terminals.
Common resolutions include:
1024×600
1280×800
1920×1200
For cost-sensitive projects:
1024×600 provides a practical solution.
For advanced graphical interfaces:
1280×800 provides better visual space.
For professional applications requiring detailed images:
Higher resolutions may be considered.
13.3-inch Full HD TFT LCD modules with 1920×1080 resolution are commonly used in applications requiring professional image quality.
Typical applications include:
Industrial monitoring systems
Medical terminals
Vehicle displays
Professional equipment
High-end embedded systems
At this size, lower resolutions may result in reduced image sharpness, especially when users view the display closely.
Related product information: 13.3 Inch TFT LCD Display Solutions
Application: What equipment will use the display?
Screen size: What physical display dimension is required?
Viewing distance: How close will users view the screen?
Interface complexity: Does the UI contain charts, images, or video?
Processor capability: Can the hardware support the resolution?
Display interface: LVDS, MIPI, eDP, or RGB?
Touch requirement: Is a touchscreen needed?
Brightness: Indoor or outdoor environment?
Power budget: Is energy consumption limited?
Lifecycle: Is long-term supply required?
No. Higher resolution provides better image detail, but it also increases cost, power requirements, and hardware processing demand. The best choice depends on the application.
Yes. 800×480 remains widely used for small industrial HMIs, embedded equipment, and applications where cost efficiency is important.
1024×600 provides a good balance between image clarity, system performance, and cost. It is suitable for many touchscreen and embedded applications.
Yes. Higher resolutions require greater data bandwidth and graphics capability. The LCD controller must support the panel resolution and interface specification.
Sometimes, but the replacement requires compatibility checking for size, interface, connector, timing, firmware, voltage, and software layout.
1024×600 and 1280×800 are commonly selected because they provide enough space for modern graphical interfaces while maintaining reasonable hardware requirements.
Not always. Full HD is suitable when detailed images, video, or professional visualization are required. Simple control interfaces may not need it.
Yes. Higher-resolution panels usually require more data processing and may require stronger controller and graphics resources.
The best resolution depends on screen size and interface design. 1024×600 and 1280×800 are common choices for industrial touchscreen products.
Provide the display size, application, viewing distance, interface type, processor platform, touch requirement, and image content. A suitable resolution can then be selected based on the complete system design.
The correct display resolution depends on more than pixel numbers. Screen size, interface, controller board, brightness, touch technology, and application environment should all be considered together.
Send your LCD size, required resolution, interface specification, application details, and quantity requirement. lcdsell.com can help recommend a suitable TFT LCD module and display solution.
