For static HMIs: response time is usually less critical than readability, viewing angle, brightness, and temperature range.
For moving graphics: check both response time and refresh rate rather than using either value alone.
For cold environments: evaluate the real panel at the minimum operating temperature because room-temperature response values may not represent field behavior.
For replacement projects: compare the measurement method before deciding that one panel is “faster” than another.
Term | Meaning | Why It Matters |
|---|---|---|
Tr | Rise time between two defined optical states | Shows how quickly one part of the transition occurs |
Tf | Fall time for the reverse transition | The reverse direction may have a different speed |
Tr+Tf | Combined rise and fall time | Common datasheet method for industrial LCD panels |
GTG | Gray-to-gray transition time | Better reflects transitions between intermediate gray levels |
Refresh rate | How often the display system updates a frame | Does not describe how fast the liquid crystal physically changes |
Ghosting | Visible trail behind moving content | Can reduce readability of dynamic information |

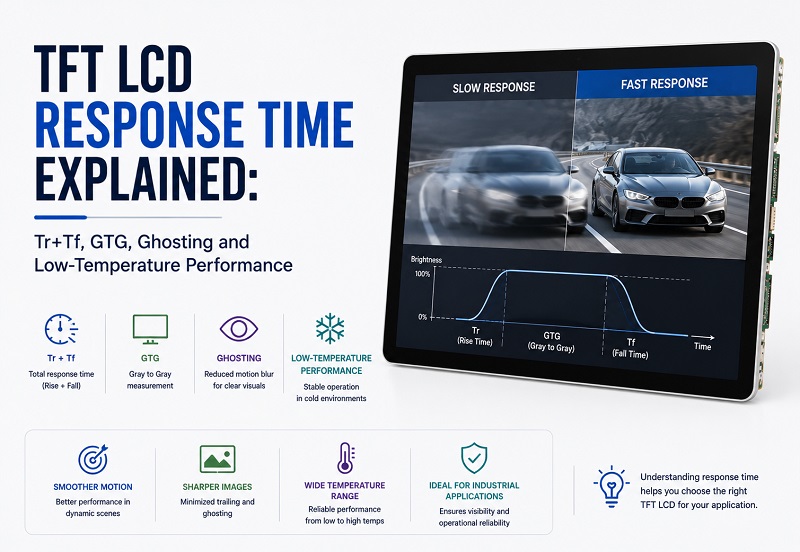

A TFT LCD pixel does not change instantaneously when the voltage applied to the liquid crystal changes. The molecules need time to rotate into a new orientation, which changes how much light passes through the pixel.
That physical transition time is the basis of the response-time specification.
A faster transition generally helps reduce:
Motion trails
Smearing behind moving text
Blur during animated menus
Delayed visual changes in fast dashboards
However, response time is only one part of motion performance. Resolution, refresh rate, overdrive, interface bandwidth, image processing, and software rendering can also affect what the user sees.
If you are comparing different panel structures, the IPS vs TN TFT LCD industrial comparison explains why panel mode affects more than just viewing angle.
Many industrial LCD datasheets specify response time as two separate components:
Tr: rise time
Tf: fall time
These values are measured between defined luminance thresholds rather than from the first electrical change to the final perfectly stable pixel state.
The exact test method can vary between panel manufacturers, so two datasheets should not be compared solely by adding the numbers unless the measurement conditions are similar.
Datasheet tip: Always read the note beneath the response-time table. Temperature, contrast thresholds, drive voltage, and measurement direction can change the published result.
For a broader datasheet review workflow, see How to Read a TFT LCD Datasheet: 15 Parameters Engineers Must Check.
Tr+Tf is the combined time required for a defined rise transition plus a defined fall transition.
This value is useful because it gives a simple reference for the panel’s optical switching speed, but it should not be treated as a complete description of every real gray-level change.
A panel can have a reasonable Tr+Tf result while some intermediate gray transitions are noticeably slower.
Liquid crystal motion is not always symmetrical. The electrical drive and molecular relaxation behavior can make one direction faster than the reverse direction.
This is why engineers should review Tr and Tf separately when the datasheet provides both values.
GTG means gray-to-gray. Instead of measuring only a transition between two extreme optical states, GTG measures changes between intermediate gray levels.
This can be useful because real images contain many gray and color transitions rather than only pure black and pure white.
But a single GTG number can still hide variation. One gray transition may be fast while another is slower.
Comparison | Tr+Tf | GTG |
|---|---|---|
What is measured | Defined rise and fall transitions | One or more gray-level transitions |
Common use | Industrial panel datasheets | Monitor and motion-performance comparisons |
Main limitation | Does not represent every gray transition | A single number may not represent the slowest gray transition |
Comparison rule: Do not compare a GTG number from one panel directly with a Tr+Tf number from another and conclude that one is faster. The test methods describe different transitions.
Response time and refresh rate are related to motion quality, but they describe different parts of the display system.
Response time describes how quickly the pixel changes optically.
Refresh rate describes how often the system sends a new frame.
Scenario | What the User May See |
|---|---|
Fast refresh + slow pixel response | New frames arrive quickly, but pixels leave trails or smear |
Fast response + low refresh | Pixels switch quickly, but motion can still look stepped because frames update less often |
Fast response + suitable refresh | Cleaner motion when the controller and source also perform correctly |
Higher-resolution displays also require more data bandwidth. If the system struggles to render or transmit the native resolution, apparent motion problems may come from the graphics platform rather than the LCD response itself.
For that reason, review the TFT LCD Resolution Guide together with response-time requirements.
Ghosting is a visible trail or residual image behind moving content. It occurs when the previous pixel state has not fully transitioned before the next image appears.
Common examples include:
Text leaving a temporary trail while scrolling
A moving icon appearing to have a shadow
Fast-changing graphs looking smeared
Camera images appearing soft during motion
Ghosting is not the same as permanent burn-in. It is a motion-transition effect and may disappear when the image stops moving.
Slow liquid crystal response
Low ambient temperature
Slow gray-to-gray transitions
Incorrect or overly aggressive overdrive
Low frame rate
Image processing delay
If a display shows flicker, scrambled images, white screens, or image sticking rather than only motion trails, use the Industrial LCD Troubleshooting Guide to separate panel-response problems from signal, power, timing, and connector faults.
Low temperature is one of the most important environmental factors affecting TFT LCD response time.
As temperature falls, the liquid crystal material becomes more viscous. The molecules move more slowly when the electric field changes.
This can produce:
Slower pixel transitions
Motion trails
Delayed gauge movement
Reduced contrast stability
Temporary smearing during animation
That is why a panel that looks fast at room temperature can behave very differently in a cold vehicle, refrigerated warehouse, outdoor kiosk, or winter construction machine.
The Operating Temperature Range for Industrial Displays Explained covers the wider thermal-selection problem, including the difference between operating and storage temperature.
A datasheet may list a low operating-temperature limit, but that does not mean the response time at that limit is identical to the room-temperature value.
For motion-sensitive equipment, validate:
Cold startup
Response after several minutes of warm-up
Scrolling text
Animated warnings
Moving gauges
Video or camera content
Cold-environment rule: “Operates at -30°C” and “maintains room-temperature motion performance at -30°C” are not the same statement. Test the actual application at the required minimum temperature.
High temperature can also change the optical behavior of the liquid crystal material. The effect is different from cold-temperature slowdown, but image quality can still change.
Possible issues include:
Contrast changes
Black-level instability
Color shift
Different transition behavior
Faster aging of optical films and adhesives
Response time should therefore be considered together with the complete temperature specification rather than reviewed only at 25°C.
TN technology has traditionally been associated with faster pixel transitions, while IPS is selected more often when wide viewing angle and stable color are the main priorities.
For industrial equipment, the decision should be application-based rather than assuming TN is always better for motion or IPS is always slow.
Requirement | TN Direction | IPS Direction |
|---|---|---|
Fast simple transitions | Often a strong option | Modern panels may also perform well |
Wide viewing angle | Requires careful orientation | Usually stronger |
Shared-view HMI | Application dependent | Often preferred |
Cold-motion requirement | Validate actual panel | Validate actual panel |
If the installation angle is also important, review TFT LCD Viewing Angle Explained: 6 O'Clock vs 12 O'Clock vs IPS.
Overdrive is a drive technique that temporarily applies a stronger transition command to help the liquid crystal reach its target state faster.
When correctly tuned, it can improve certain gray-to-gray transitions.
When poorly tuned, it can create overshoot artifacts such as:
Bright halos
Dark halos
Inverse ghosting
Uneven transition behavior
Overdrive behavior can depend on temperature, panel mode, and gray-level transition. It should therefore be validated with the actual panel rather than treated as a universal software setting.
The controller does not change the fundamental liquid crystal chemistry, but system-level motion quality still depends on the graphics and timing path.
Check:
Native resolution support
Correct refresh rate
Stable pixel clock
Correct porch and sync timing
Graphics rendering performance
Frame-buffer behavior
Video decoding capability
A slow Android or X86 application can create delayed screen updates even when the panel itself has a fast response time.
For platform selection, use the LCD Controller Board Guide: HDMI/VGA vs Android vs X86.
Application | Motion Sensitivity | Main Validation Focus |
|---|---|---|
Static industrial HMI | Low to medium | Menu transitions, alarm changes, temperature performance |
Vehicle instrument cluster | Medium to high | Cold start, moving gauges, warning transitions |
Camera monitor | High | Moving objects, video latency, ghosting |
Medical monitoring | Application dependent | Waveform clarity, color stability, viewing angle |
Warehouse terminal | Medium | Cold-room performance and scrolling UI |
Digital signage | Medium to high | Video content, scaling, controller performance |
Establish a baseline using the production controller, software, cable, and power supply.
Do not rely only on a black-and-white test pattern. Include scrolling text, gauges, charts, warning icons, camera feeds, or video if those are part of the final product.
Allow the complete assembly to reach the target cold condition before evaluating startup and motion.
Compare cold-start behavior with the display after it has been operating for a defined period.
A panel that performs well on a black-to-white test can still show trails on mid-gray graphics.
Confirm that the processor, application, interface, and frame rate are not creating the delay before blaming the liquid crystal response.
Best practice: Approve motion performance with the real panel, final controller, final interface timing, and actual operating temperature. A datasheet number is a useful filter, not a substitute for system validation.
A buyer compares a GTG value with a Tr+Tf value and assumes the smaller number is automatically better.
Better approach: Confirm the same measurement method and conditions first.
The panel is approved at 25°C even though the final equipment will start below freezing.
Better approach: Validate cold-start motion at the real minimum operating temperature.
A 60 Hz screen is assumed to have a specific millisecond response time.
Better approach: Treat frame update rate and liquid crystal transition time as separate specifications.
The project gains response speed but creates viewing-angle problems after installation.
Better approach: Balance motion performance with viewing angle, brightness, color stability, temperature, and cost.
The UI updates slowly because the processor or application cannot render frames quickly enough.
Better approach: Measure the system pipeline from software event to optical pixel change.
Real graphical interfaces contain many intermediate colors and gray levels.
Better approach: Include gray-to-gray and real-content tests.
LCD size and model: Exact dimensions or target panel
Resolution: Native pixel format
Panel mode: TN, IPS, or other required structure
Response specification: Tr, Tf, Tr+Tf, GTG, or supplier test method
Refresh rate: Required frame update rate
Content type: Static UI, moving gauges, video, camera, or animation
Operating temperature: Minimum and maximum values
Cold-start requirement: Whether full motion performance is needed immediately after power-on
Viewing angle: Required installation orientation
Interface: RGB, LVDS, MIPI DSI, eDP, or another interface
Controller: MCU, MPU, Android board, X86 board, or video controller
Brightness: Indoor, high-brightness, or sunlight-readable target
Touch: PCAP, resistive, or no touch
Annual quantity: Prototype and production demand
Lifecycle: Required supply period
There is no universal target. A static industrial HMI can tolerate slower transitions than a camera monitor or moving vehicle display. Compare the response specification with the real application and temperature range.
Tr+Tf is the sum of a defined rise transition and fall transition. It is commonly used to describe the panel’s optical switching speed.
Neither method is inherently better. They measure different transitions. GTG focuses on gray-level changes, while Tr+Tf commonly represents defined rise and fall transitions.
No. Refresh rate describes how frequently frames update, while response time describes how quickly the liquid crystal pixel changes optically.
Liquid crystal viscosity increases as temperature falls, so the molecules can take longer to change orientation. This can create delayed transitions and visible ghosting.
Yes. Modern IPS panels can provide response performance suitable for many industrial and multimedia applications. The actual panel specification should be checked rather than relying only on the technology name.
No. Ghosting can come from slow pixel transitions, but system frame rate, graphics rendering, video processing, or overdrive settings can also contribute to poor motion clarity.
Not necessarily. A higher refresh rate cannot fully solve slow liquid crystal transitions. The pixel still needs to reach the new optical state quickly enough.
Yes for cold-environment or motion-sensitive applications. Room-temperature data may not represent cold-start behavior.
Provide the display size, resolution, interface, required temperature range, motion content, refresh rate, viewing-angle requirement, brightness, controller platform, and expected quantity.
TFT LCD response time should be evaluated as a system and environmental requirement, not simply as the smallest millisecond number in a datasheet.
First confirm how the supplier measures response time. Then review the panel mode, refresh rate, controller capability, gray-level behavior, and operating-temperature range. For equipment used in cold environments, test the real display at cold start because liquid crystal response can slow significantly as temperature falls.
For static industrial interfaces, viewing angle, brightness, readability, lifecycle, and temperature stability may be more important than shaving a few milliseconds from response time. For vehicle displays, camera monitors, moving graphs, or video applications, motion testing should become part of the sample-approval process.
Send the display size, resolution, interface, response-time requirement, minimum operating temperature, content type, controller platform, brightness target, viewing-angle requirement, and expected quantity. Toroson can help compare TFT LCD panels and validate options for industrial HMI, automotive, camera, medical, and embedded display applications.
