VTH102XA
Toroson

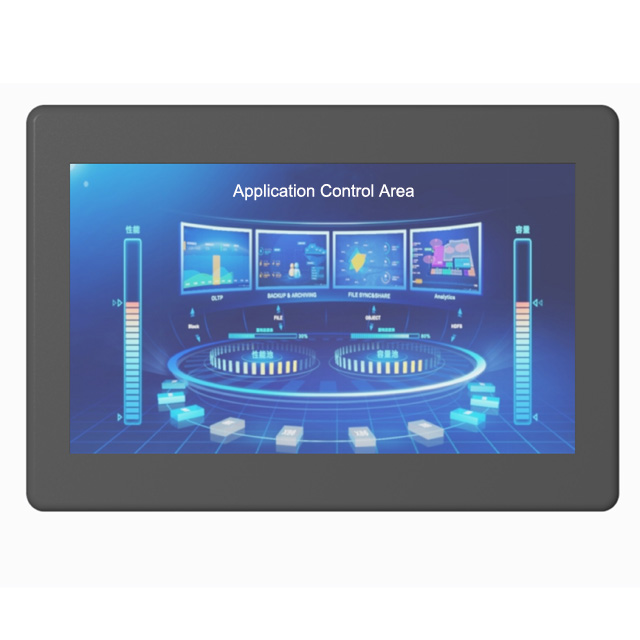

The Toroson 7-inch LCD Touch Monitor integrates a high-resolution 1024×600 screen with 300 cd/m², Projected Capacitive (PCAP) touch functionality — delivering superior visual clarity and intuitive touch response. This combination makes it ideal for industrial handheld devices, smart terminals, rugged tablets, kiosk displays, and OEM embedded systems where visibility and performance are paramount.
As a trusted industrial TFT LCD display monitor supplier, we support bulkorders, sample evaluation, OEM/ODM customization, and technical integration guidance to help engineering and procurement teams accelerate product development and production.
PCAP Touch Integration: Projected capacitive touch panel offers accurate, multi-touch responsiveness for intuitive user interaction.
IPS TFT Panel: Offers wide viewing angles and accurate color reproduction, minimizing color shift when viewed off-axis.
Industrial & OEM Ready: Built to support rugged applications, human-machine interfaces (HMIs), handheld terminals, and custom OEM products.
B2B Procurement Support: Sample availability, volume pricing, and custom options support enterprise deployment needs.
TFT LCD | ||
1 | Size | 7" TFT -LCD |
2 | Resolution | 1024×600 |
3 | Luminance | 300cd/m² |
4 | Contrast Ratio | 1000:1 |
5 | View Angles | maximum 60° from horizontal (+/- 30° from vertical)
Peep-proof protection film be used to decrease the visual angle |
Touch Display | ||
1 | Touch Screen | P-CAP |
2 | Touch Type | Capacitive |
3 | Touch points | 10 points |
4 | Surface | AG |
5 | Surface hardness | ≥6H |
Interfaces | ||
1 | IO Port | 1*USB-B 2.0 |
2 | Kensington Security Slot | |
Power | ||
1 | Power Input 1 | Power supply over USB (5V/1A) |
Features | ||
1 | Operating system | Android、Windows、Linux、MacOS、Google OS |
Physical Properties | ||
1 | Enclosure Color | Black (RAL7016) |

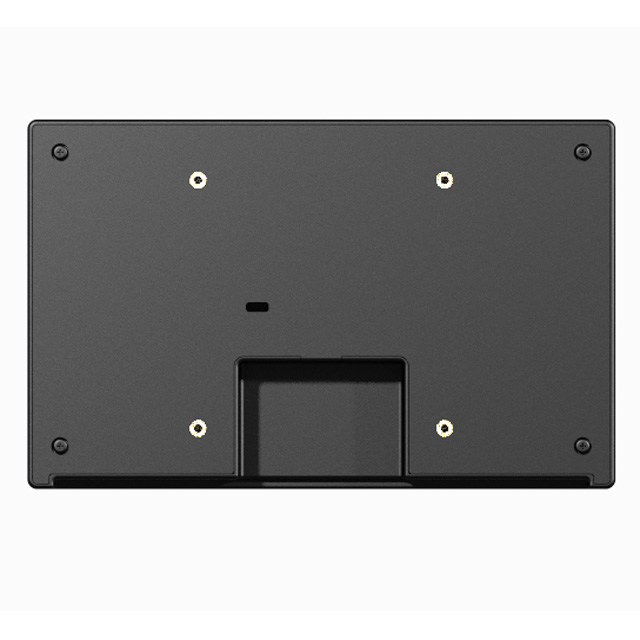

2 | VESA | 75mm×75mm |
3 | Installation | Desktop、Hanging |
4 | IP Rate | IP 41 |
5 | IK Rate | IK 05 |
6 | Dimension | 180.9 mm x 113.6mm x 23.16 mm (L x W x H) |
7 | Weight | Weight: 386g |
Environmental | ||
1 | Operation Temp | -20℃ ~ +60℃ |
2 | Storage Temp | -20℃ ~ +70℃ |
Accessories | ||
1 | 1*USB Type B to USB Type A | Optional |
Certification | ||
1 | Safety Certification | CE(Chargeable) |
This 7″ 1024×600 touch monitor with PCAP touch is well suited for a wide array of B2B applications:
Industrial Handheld Devices & Rugged Tablets – superior visibility and touch interaction.
Human-Machine Interfaces (HMIs) – intuitive control panels for factory automation.
Kiosks & Self-Service Terminals – interactive customer interfaces.
Automotive & Vehicle Displays – in-cab control displays and instrument screens.
Medical & Diagnostic Equipment – precise UI in medical measurement and monitoring devices.
OEM Embedded Systems – compact display solution for custom consumer and industrial products.
| Procurement Feature | Benefit to B2B Buyers |
|---|---|
| Flexible MOQ | Sample, small batch, and large volume orders accepted |
| Volume Pricing | Competitive pricing for enterprise-level procurement |
| Customization Options | Interface, mechanical, touch integration & brightness adjustments |
| Sample Evaluation Support | Evaluate display module performance in prototype systems |
| Quality Verification | Functional and visual testing prior to shipment |
| Technical Integration Support | Pinout, timing, and driver guidance |
| Supply Continuity | Reliable stock and production planning for OEM programs |
We partner with engineering and sourcing teams to ensure clarity, documentation, and supply alignment for your project lifecycle.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
