TI070CT213
Toroson

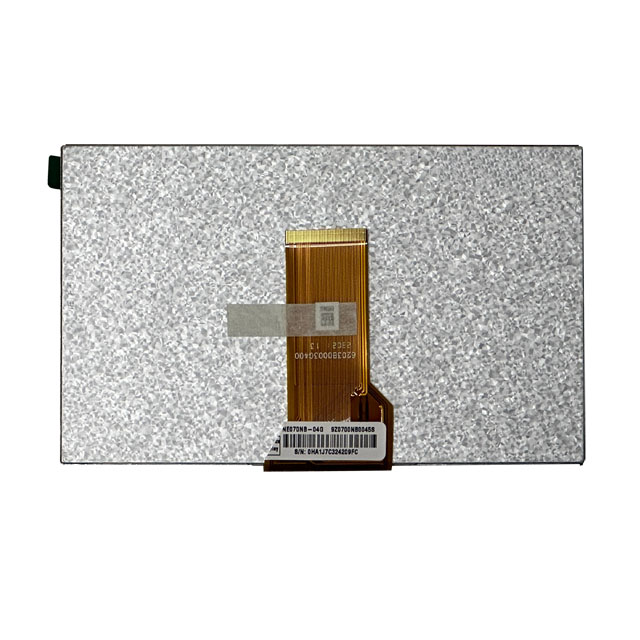

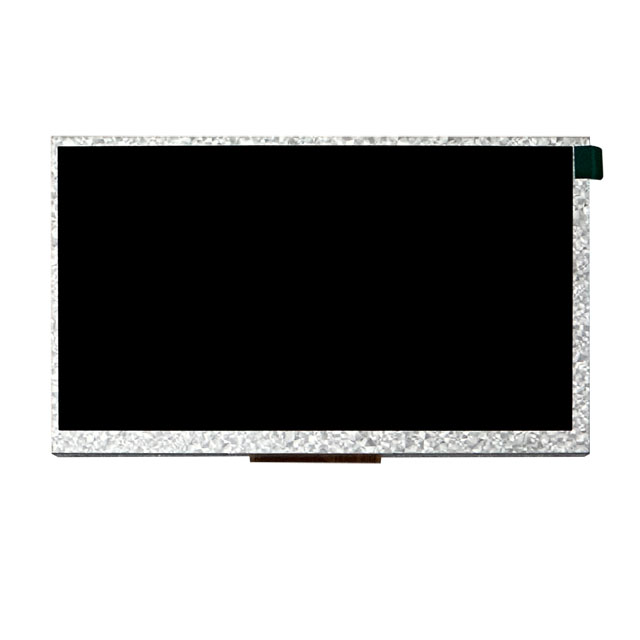

The Toroson 7″ 800×480 TTL TFT LCD Display Module is a compact, reliable display solution designed for industrial, embedded and OEM applications. With an 800×480 resolution and a 50-PIN TTL RGB interface, this display delivers clear text and graphics for human-machine interfaces (HMIs), handheld devices, smart terminals, and automation systems. The module’s 250 cd/m² typical brightness provides balanced visibility for indoor and controlled lighting environments.
As a trusted industrial display supplier, we support bulk procurement, sample testing, OEM/ODM customization, and technical integration guidance to help engineering and sourcing teams accelerate product development and production.
7″ Standard TN Panel: Compact footprint with 800×480 (WVGA) resolution for UI, text and graphical displays.
250 cd/m² Brightness (Typical): Balanced luminance offering clear readability in indoor industrial settings.
50-Pin TTL RGB Interface: Standard parallel digital interface for simple integration with microcontrollers and embedded boards.
Wide Operating Temperature (20 ~ 70 °C): Suitable for a variety of industrial environments and embedded applications.
Industrial & OEM Ready: Designed for robustness and reliability in control panels, instruments, and embedded systems.
B2B Procurement Friendly: Supports sample orders, scalable bulk purchasing, and customization to match design requirements.
No. | Item | Specification | Remark |
1 | LCD size | 7 inch(Diagonal) | |
2 | Driver element | a-Si TFT active matrix | |
3 | Resolution | 800 × 3(RGB) × 480 | |
4 | Display Mode | Normally White, Transmissive | |
5 | Dot pitch | 0.0642(W) × 0.1790(H) mm | |
6 | Active area | 154.08(W) × 85.92(H) mm | |
7 | Module size | 164.9(W) ×100.0(H) ×5.7(D) mm | Note 1 |
8 | Surface treatment | Anti-Glare | |
9 | Color Arrangement | RGB-stripe | |
10 | Interface | Digital | |
11 | Backlight power consumption | 1.344W (Typ.) | |
12 | Panel power consumption | 0.240W(Typ.) | |
13 | Weight | 154g(Typ.) | |
14 | Source IC Gate IC | EK9713/NT39419 EK73002/NT52001 | |
15 | Inversion | 1+2dot |
This 7″ 800×480 TTL LCD display module is ideal for a variety of B2B and embedded display needs:
Industrial Human-Machine Interfaces (HMIs) – operator displays and control panels
Embedded Systems & Controllers – compact displays for automation and monitoring
Handheld Terminals & Instruments – rugged small displays for field use
OEM Electronics & Branded Devices – display solution for custom products
Kiosk and POS Interfaces – clear readout for transaction consoles
Measurement & Test Equipment Displays – reliable visuals for instruments
The combination of a standard TTL interface and balanced brightness makes this module a versatile choice for engineering, automation, and product design teams.
| Procurement Feature | Benefit |
|---|---|
| MOQ Flexibility | Sample, small batch, and large volume orders accepted |
| Volume Pricing | Competitive pricing for enterprise procurement |
| Customization Options | Mechanical, brightness, interface and mounting modifications |
| Sample Support | Test before mass ordering to verify performance |
| Quality Assurance | Pre-shipment verification and documentation provided |
| Technical Integration Support | Guidance on wiring, timing, and driver setup |
| Long-Term Availability | Stable inventory for continuous OEM/industrial supply |
We partner with sourcing and engineering teams to ensure display modules meet both technical specifications and supply planning requirements.
Established in 2014, Xiamen Toroson Technology Corporation Limited has been a trusted leader in the manufacturing of TFT LCDs, TFT LCMs, Touch Screens, Controller Boards, and other related electronic components.
Based in Xiamen, China, with additional offices and warehouses in Shenzhen and Hong Kong, Toroson is strategically positioned to provide superior logistics and service to clients worldwide. Toroson's brother company Viete has been an authorized distributor of Innolux for small to medium-sized TFT LCD/LCM and FOG products since 2005.
[Download Full Datasheet] -->
7inch TI070CT213 Toroson Spec. .pdf
